Replaced by the XNV-8080R.

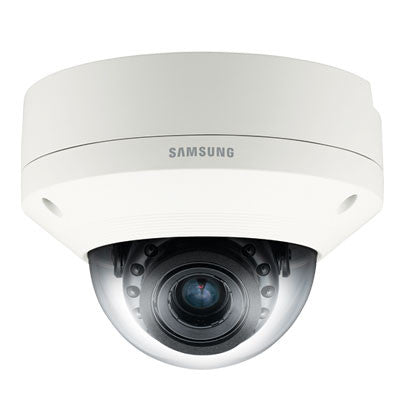

Samsung SNV-8081R Features
- Max Resolution: 2592 x 1944, can operate in 5MP and 2MP modes
- Image Sensor: 1/1.8" 6M CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.25Lux (1/30sec, F1.2, 50IRE), 0.004Lux (2sec, F1.2, 50IRE); 0.1Lux (1/30sec, F1.2, 30IRE), 0.0017Lux (2sec, F1.2, 30IRE). 0.25Lux (1/30sec, F1.2, 50IRE), 0.004Lux (2sec, F1.2, 50IRE) 0.1Lux (1/30sec, F1.2, 30IRE), 0.0017Lux (2sec, F1.2, 30IRE)
- IR Illuminators: Yes
- IR Illuminator Range: 30m (98.43ft)
- Lens Type: DC auto iris, support P-Iris mode / Board-in type
- Focal Length: 3.6 ~ 9.4mm / F1.2
- Zoom: 2.6x motorized varifocal
- Iris: Auto
- Focus: Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
- Field of View: H : 104.0°(Wide) ~ 39.2°(Tele) / V : 75.2°(Wide) ~ 29.3°(Tele)
- Compression Styles: H.265, H.264, MJPEG
- Frame Rate: 5M mode - H.265 / H.264 : 30fps in all resolutions MJPEG : more than 800 x 600 : 1fps, equal or less than 800 x 600 : 15fps
- WDR Technology: Yes, 120dB
- Image Settings: Camera Title, Day & Night Auto (ICR), Backlight Compensation, Contrast Enhancement, SSDR (Samsung Super Dynamic Range), Digital Noise Reduction SSNRIII (2D+3D noise filter), Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
- Privacy Mask: Yes, 32 Rectanglular zones
- Built-in Microphone: No
- Audio Capabilities: Supports two-way audio through built in I/O 3.5mm stereo mini jack
- Alarm/Event Management: Alarm input, Motion detection, Intelligent video analytics, Network disconnect, File upload via FTP and E-mail, Notification via E-mail, TCP Local storage (SD/SDHC) or NAS recording at event triggers, External output
- ONVIF: Yes
- Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP)
- Users: 10 users at unicast mode
- On-board Storage: Yes, SD/SDHC/SDXC (128GB) memory card slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: weatherproof IP66, vandal-proof IK10
- Dimensions: Ø160.0 x 118.5mm (Ø6.3" x 4.67")
- Weight: 995g (2.9 lb)
- Operating Temperature: -40°C ~ +55°C (-40°F ~ +131°F)
- Operating Humidity: Less than 90% RH
- Power/Consumption: 24V AC ±10%, 12V DC ±10%, PoE (IEEE802.3af, Class3) / Max. 12.0W/13.5W (24V AC, Heater off / on), Max. 10.0W/11.5W (12V DC, Heater off / on), Max. 11.5W/12.95W (PoE, Heater off / on)
- Warranty: 3 Years
Samsung SNV-8081R Overview
Samsung introduces its new line of cameras with the next generation of compression H.265 (HEVC). With the increase of megapixel technology the new H.265 compression will elevate bandwidth and storage issues.
