Hanwha / Samsung

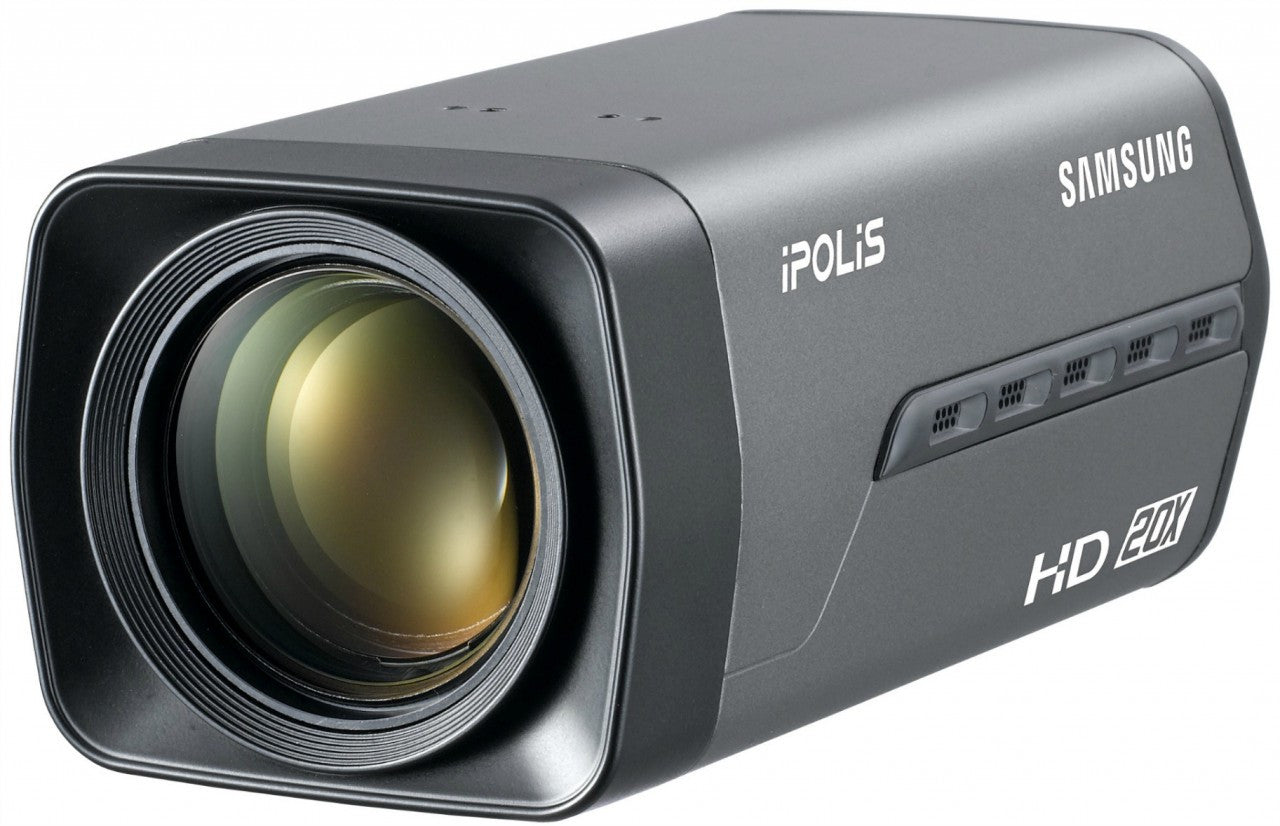

Samsung SNZ-5200 1.3 Megapixel HD 20x Network Zoom Camera
Discontinued. Replaced by the SNZ-6320.
Samsung SNZ-5200 Features
- Resolution: 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
- Image Sensor: 1/3" 1.3M PS CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color : 0.7Lux (F1.2, 50IRE), 0.01Lux (Sens-up 60x, 50IRE); B/W : 0.08Lux (F1.6, 50IRE), 0.001Lux (Sens-up 60x, 50IRE)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: DC auto iris
- Focal Length: 4.45 ~ 89mm
- Zoom: 20x
- Iris: auto
- Focus: AF / One-shot AF / Manual (Remote control via Network)
- Field of View: H : 56.56˚(Wide) ~ 3.10˚(Tele) / V : 43.32˚(Wide) ~ 2.34˚(Tele)
- Compression Styles:
- Frame Rate: 30fps
- Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Motion Detection, Privacy Masking, Sens-up (Frame Integration), Gain Control, White Balance, Electronic Shutter Speed, Digital Zoom, Flip/Mirror, Intelligent Video Analytics, Alarm I/O, Remote Control Interface, RS-485 Protocol
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: Bi-directional audio, Mic / Line in, Line out
- Alarm/Event Management: Motion
- ONVIF: Yes
- Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
- Users: 10 users at unicast mode
- On-board Storage: Yes, SD/SDHC memory slot
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: N/A
- Dimensions: 72.0 x 60.0 x 136.0mm (2.83" x 2.36" x 5.35")
- Weight: 540g (1.19 lb)
- Operating Temperature: -10°C ~ +50°C (+14°F ~ +122°F)
- Operating Humidity: 20 ~ 80% RH
- Power: 12V DC, PoE (IEEE802.3af); Max. 7.5W
- Warranty: 3 Years
Samsung SNZ-5200 Overview
The SNZ-5200 is a high performance 1.3 megapixel camera with a 20x auto focus zoom lens. This fully ONVIF compliant camera features multiple resolution modes from CIF (320 x 240) through 16:9 format 720p High Definition, to full 1.3 megapixel (1280 x 1024). It provides simultaneous transmission, which allows for streaming of both high and low bandwidth formats to your viewing or recording locations for simultaneous viewing/recording. This camera features a minimum illumination specification of 0.3 Lux color, True Day / Night operation with ICR, Hybrid (analog) video output, a local SD memory card slot, and is powered via either PoE or 24 VAC. Maximum frame rate is 22 fps @ 1280 x 1024; 30fps @ 720P.
