Hanwha / Samsung

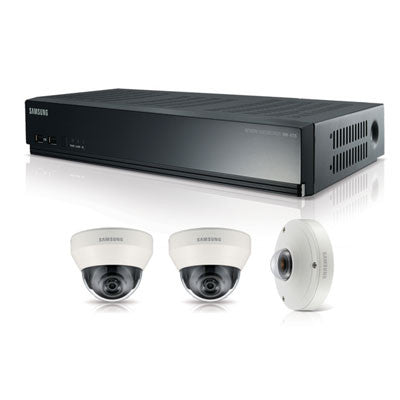

Samsung SRK-3030S Dome & Fisheye Camera & NVR Kit
Samsung SRK-3030S Includes:
• SRN-473S PoE NVR with 1TB Hard Drive
• SND-L6013R Cameras x 2
• SNF-8010 5MP Fisheye Camera
• Remote Control, Mouse, User Manual, Quick Guide, CD, Power cable, Warranty Card, Ethernet Cables (60ft) x 3
Key Features:
NVR (SRN-473S : 1ea)
• 4CH up to 8MP cameras supported
• 32Mbps network camera recording
• Plug & play by 4 PoE/PoE+ ports
• 1HDD - max 4TB
• HDMI / VGA local monitor
• Supports 2-way audio and PTZ control
• Supports protocols: Samsung & ONVIF Profile S
• POS Integration with text search
• Total 50W PoE budget
Camera (SND-L6013R : 2ea)
• Max. 2M (1920 x 1080) resolution
• 3.6mm fixed lens
• 0.15Lux@F1.8 (Color), 0Lux@F1.8 (B/W : IR LED on)
• 30fps@all resolutions (H.264)
• H.264, MJPEG dual codec, Multiple streaming
• MD, Tampering, micro SD/SDHC memory slot, PoE
• IR viewable length 15m
• Hallway view support (Rotate 90˚/270˚)
• LDC support (Lens Distortion Correction)
Camera (SNF-8010 : 1ea)
• Max. 5MP (1920 x 1080) resolution
• 360° Dewarp fisheye, 6 viewing modes
• 20fps@all resolutions (H.264)
• H.264, MJPEG dual codec, multiple streaming
• Motion detection, tampering, audio detection
• Micro SD/SDHC/SDXC memory slot, PoE
• Digital PTZ
Please follow the product links above for more detailed information about each component and links to the data sheets.
Overview:
Samsung’s newly introduced 4CH IP Kit with 360˚ view is the only kit on the market that provides greater coverage with less equipment. The addition of the fisheye camera reduces camera equipment and cost! Featuring, high definition video quality, all-in-one solution designed for small business owners, plug and play easy installation, fisheye takes the place of 3-4 cameras, simple setup with wizard for single configuration (set-up NVR and cameras in one shot)
