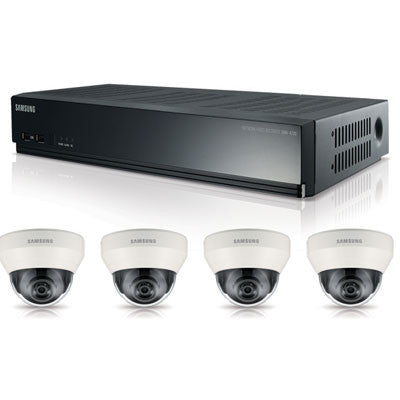

Samsung SRK-3040S Dome Camera & NVR Kit

Samsung SRK-3040S Includes:

• SRN-473S PoE NVR with 1TB Hard Drive
• SND-L6013R Cameras x 4
• Remote Control, Mouse, User Manual, Quick Guide, CD, Power Cable, Warranty Card, Ethernet Cables (60ft) x 4

Key Features:

NVR (SRN-473S : 1ea)

• 4CH up to 8MP cameras supported
• 32Mbps network camera recording
• Plug & play by 4 PoE/PoE+ ports
• 1HDD - max 4TB
• HDMI / VGA local monitor
• Supports 2-way audio and PTZ control
• Supports protocols: Samsung & ONVIF Profile S
• POS Integration with text search
• Total 50W PoE budget

Camera (SND-L6013R : 4ea)

• Max. 2M (1920 x 1080) resolution
• 3.6mm fixed lens
• 0.15Lux@F1.8 (Color), 0Lux@F1.8 (B/W : IR LED on)
• 30fps@all resolutions (H.264)
• H.264, MJPEG dual codec, Multiple streaming
• MD, Tampering, micro SD/SDHC memory slot, PoE
• IR viewable length 15m
• Hallway view support (Rotate 90˚/270˚)
• LDC support (Lens Distortion Correction)

Please follow the product links above for more detailed information about each component and links to the data sheets.

Overview:

Samsung’s newly introduced 4CH IP Kit solve surveillance challenges for small to medium sized applications. Using WiseNet Lite series and Samsung’s PoE NVR together as a network solution saves both installation time and cost, suitable for small to medium sized applications. Install cameras on entrance/lobbies, parking lots, elevators, hallways, aisles and more.
