Hanwha / Samsung

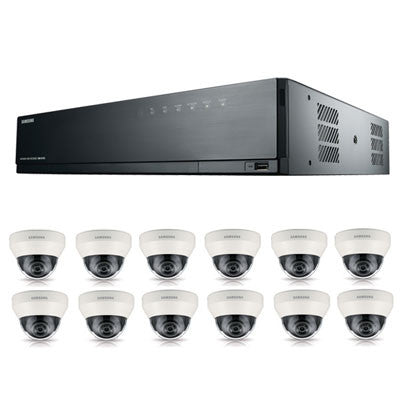

Samsung SRK-5120S Dome Camera & NVR Kit
Samsung SRK-5120S Includes:
• SRN-1673S PoE NVR with 3TB Hard Drive
• SND-L6013R Cameras x 12
• Remote Control, Mouse, User Manual, Quick Guide, CD, Power Cable, Warranty Card, Ethernet Cables (60ft) x 12, Rack Mount Ears
Key Features:
NVR (SRN-1673S : 1ea)
• 16CH up to 8MP cameras supported
• 80Mbps network camera recording
• Plug & play by 16 PoE/PoE+ ports
• 4HDDs - Internal max 24TB, external 1 eSATA
• HDMI / VGA local monitor
• Supports 2-way audio and PTZ control
• Supports protocols: Samsung & ONVIF Profile S
• POS integration with text search
• Total 200W PoE budget
Camera (SND-L6013R : 12ea)
• Max. 2MP (1920 x 1080) resolution
• 3.6mm fixed lens, 50ft IR
• 30fps@all resolutions (H.264)
• H.264, MJPEG dual codec, multiple streaming
• Motion detection, tampering, built-in mic
• Micro SD/SDHC memory slot, PoE
• Hallway view support (Rotate 90˚/270˚)
• LDC support (Lens Distortion Correction)
Please follow the product links above for more detailed information about each component and links to the data sheets.
Overview:
Samsung’s newly introduced 8CH IP Kit solve surveillance challenges for small to medium sized applications. Using WiseNet Lite series and Samsung’s PoE NVR together as a network solution saves both installation time and cost, suitable for small to medium sized applications. Install cameras on entrance/lobbies, parking lots, elevators, hallways, aisles and more. Even if you’re new to IP this kit makes it easy to setup and install within minutes, all with the click of a mouse. No PC or additional network equipment is needed. Simple Setup with Wizard allows you to control settings on the cameras from one location, reducing setup and configuration time through Samsung’s unified interface
