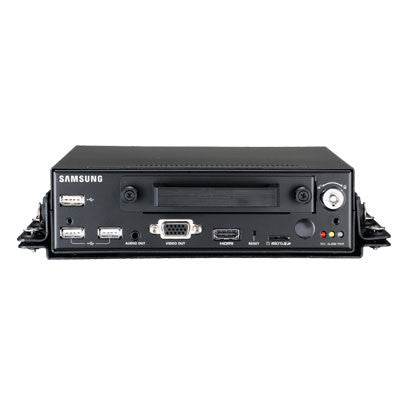

Samsung SRM-872 8-CH 8-PoE Port Mobile NVR

Samsung SRM-872 Features

• Operating System: Linux

• Camera Compatibility: Samsung & ONVIF-compatible cameras
• Maximum Number of Cameras/Channels: 8 channel selectable
• Recording Bandwidth: Max. 64 Mbps
• Compression Styles: MJPEG, H.264
• Display Layout: Live: 1 / 4 / 9 / Sequence, 8x D-zoom
• Event Notification: E-mail, Alarm out
• Alarm & Event Management: Alarm input (8), Video loss, IP camera event (Sensor, MD, Video analytics)
• Scheduled Recording: Yes
• Event Recording: Yes
• Manual Recording: Yes
• Recording Frame Rate: CIF to 3MP (depends on number of cameras)
• Remote Access with PC Based Web Browser: Yes
• Mobile App Support: iPOLiS for iOS & Android
• Playback Features: Date & Time (Calendar) / Event log list
• Hard Drive Bays: 1 x 3.5" HDD
• Max TB per HD Bay: 2 TB
• USB Ports: 3 in front
• Ethernet Ports: 12 x RJ-45 Gigabit Ethernet (Network : 1ea, Control box : 2ea, I/O box : 1ea, PoE : 8ea)
• Display Port(s): 1 x HDMI, 1 x VGA
• PoE Ports: 8 Ports: Max. 64W (Max. 8W per channel, IEEE 802.3af class 2)
• Dimensions (W x H x D): Main unit : 225.5 x 59.0 x 311.4mm (8.88" x 2.32" x 12.26") (1 DIN, Without bracket); Control box : 121.0 x 32.0 x 75.0mm (4.76" x 1.26" x 2.95"); I/O box : 155.0 x 44.0 x 70.0mm (6.1" x 1.73" x 2.76")
• Weight: Main unit : 2.16Kg (4.76 lb) (Without HDD); Control box : 0.18Kg (0.4 lb); I/O box : 0.35Kg (0.77 lb)
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Operating Humidity: 20 ~ 85% RH

• Power Source / Consumption: 12 ~ 24V DC / Total : max. 89W, Main unit : max. 25W
• Warranty: 2 years
• Also Included: NVR Main Unit, IO Box, Control Box, power cable, 2 x RS232 connect cable, 2 x RJ45 UTP cable. GPS antenna, remote control & battery. CD (user manual, quick guide, HDD fix screw & key, rear cover

Samsung SRM-872 Overview

Samsung has launched their new solution for the transportation vertical. This new technology comes with all certifications and approvals to meet the needs of school buses, police vehicles, trains, public buses and more...Full featured 8CH NVR for mobile use with PoE to power all connected cameras. Impossibly small size, only 1 single DIN. Built-in VGA/HDMI out for HD monitor connection with full menu driven mouse support. High quality HD recording with 64Mbps of throughput for up to 8MP cameras. Also included: GPS, driver status and panic box, remote control, universal mounting bracket, G sensor, built-in web server and SmartViewer software to remotely access the unit. Options includes Wi-Fi, 3/4G cellular and M12 connectivity.
