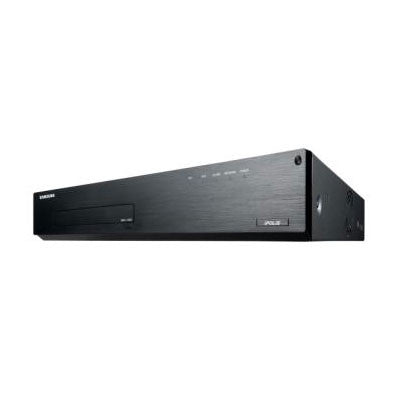

Samsung SRN-1000 64-CH NVR

Discontinued; replaced by the XRN-3010.

Samsung SRN-1000 Features

• Operating System: Linux

• Camera Compatibility: Samsung & ONVIF-compatible cameras
• Maximum Number of Cameras/Channels: 64
• Recording Bandwidth: 100/64 (RAID-5)Mbps
• Compression Styles: H.264, MPEG-4, MJPEG
• Display Layout: [Live Multi Screen] 1 / 4 / 9 / 16, Sequence
• Event Notification: E-mail, PTZ preset, Buzzer
• Alarm & Event Management: Alarm input, Video loss, Camera event (Video analytics, MD, Audio detection)
• Scheduled Recording: Yes
• Event Recording: Yes
• Manual Recording: Yes
• Recording Frame Rate: CIF to 5MP (depends on number of cameras)
• Remote Access with PC Based Web Browser: Yes
• Mobile App Support: iPOLiS for iOS & Android
• Playback Features: Date & Time / Event
• Hard Drive Bays: 8 x 3.5" HDD
• Max TB per HD Bay: 4 TB
• PoE Ports: None
• Dimensions (W x H x D): 440.0 x 88.0 x 426.8mm (17.32" x 3.46" x 16.8")
• Weight: Approx. 6.2Kg (13.67 lb), 1 x HDD
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Operating Humidity: 20 ~ 85% RH

• Power Source / Consumption: 100 ~ 240V AC ±10%, 50/60Hz, 4 ~ 1.5A / Max. 45W (154 BTU with 1 HDD), Max. 170W (580 BTU with 8 HDD)
• Warranty: 2 years

Samsung SRN-1000 Overview

Samsung's intuitive Network Video Recorder allows you to continuously develop your new or existing security system into a scalable solution. The SRN-1000 is capable of recording 100Mbps of video bandwidth, it also supports a wide range of resolutions from VGA to 5 megapixel in H.264, MPEG4 and MJPEG formats. The SRN-1000 provides maximum flexibility in storage (48TB) with a built-in 1TB HDD, a max of 8 internal HDDs & support for 2 external storage expansion units (SVS-5E).
