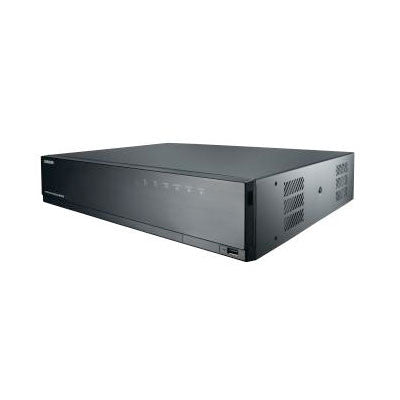

Samsung SRN-1673S 16-CH 16-PoE Port NVR

Discontinued; replaced by the XRN-1610S.

Samsung SRN-1673S Features

• Operating System: Linux

• Camera Compatibility: Samsung & ONVIF-compatible cameras
• Maximum Number of Cameras/Channels: 16 channel selectable
• Recording Bandwidth: Max. 80 Mbps
• Compression Styles: MJPEG, H.264
• Display Layout: [Local monitor] 1 / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence, [Web] 1 / 4 / 9 / 16 / Auto sequence
• Event Notification: E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
• Alarm & Event Management: Alarm input (8), Video loss, Camera event (Alarm in, MD, Video analytics)
• Scheduled Recording: Yes
• Event Recording: Yes
• Manual Recording: Yes
• Recording Frame Rate: CIF to 8MP (depends on number of cameras)
• Remote Access with PC Based Web Browser: Yes
• Mobile App Support: iPOLiS for iOS & Android
• Playback Features: Date & Time (Calendar) / Event log list / Text Search (POS) / Fast/Slow Forward/Backward, Move one step up/down
• Hard Drive Bays: 4 x 3.5" HDD
• Max TB per HD Bay: 6 TB
• USB Ports: 2 in front
• Ethernet Ports: 16 x RJ-45 10/100Mbps Ethernet interface
• Display Port(s): 1 x HDMI, 1 x VGA
• PoE Ports: 16 x PoE/PoE+ (Total 200W available)
• Dimensions (W x H x D): 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15")
• Weight: 5.6Kg (12.35lb), 1TB HDD 1ea included
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Operating Humidity: 20 ~ 85% RH

• Power Source / Consumption: 100 ~ 240V AC, 50/60Hz / 6 ~ 3A / Max. 309W (4 HDD, PoE on), 57W (4 HDD, PoE off)
• Warranty: 2 years

Samsung SRN-1673S Overview

The SRN-1673S is an easy to use Plug & Play 16-channel NVR. The built in PoE/PoE+ network switch allows cameras to be connected directly to the NVR eliminating the need for additional hardware. Equipped with 1-4 front-accessible hard drives provide up to 16Tb of storage allows for long term recording. An HDMI/ VGA monitor can be connected and controlled with USB mouse/IR remote for easy setup and monitoring.
