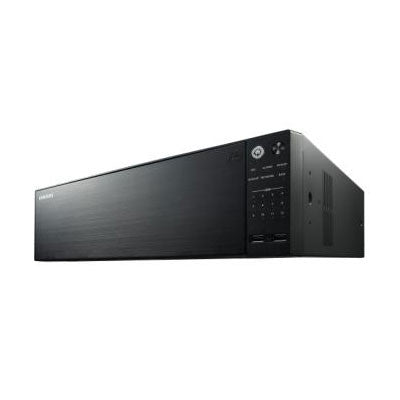

Samsung SRN-4000 64-CH NVR

Discontinued; replaced by the PRN-4011.

Samsung SRN-4000 Features

• Operating System: Linux

• Camera Compatibility: Samsung & ONVIF-compatible cameras
• Maximum Number of Cameras/Channels: 64
• Recording Bandwidth: Max. 400Mbps (2M 64camera real-time recording)
• Compression Styles: H.264, MPEG-4, MJPEG
• Display Layout: [Live Multi Screen] 1 / 4 / 9 / 16 / 1+5 / 1+7 / 1+12 / Sequence
• Event Notification: E-mail, PTZ preset, Buzzer, Monitor Out
• Alarm & Event Management: Alarm input, Video loss, Camera event (Sensor, MD, Video Analytics), Video Analytics (Up to 4CH selectable, Advanced MD, Object classfication (People, Car))
• Scheduled Recording: Yes
• Event Recording: Yes
• Manual Recording: Yes
• Recording Frame Rate: CIF to 5MP (depends on number of cameras)
• Remote Access with PC Based Web Browser: Yes
• Mobile App Support: iPOLiS for iOS & Android
• Playback Features: Date & Time (Calendar) / Event log list
• Hard Drive Bays: 12 x 3.5" HDD
• Max TB per HD Bay: 3 TB
• PoE Ports: None
• Dimensions (W x H x D): 436.0 x 132.0 x 450.0mm (17.17" x 5.2" x 17.72") (3U)
• Weight: 12.44Kg (27.43 lb) (2TB HDD included)
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Operating Humidity: 20 ~ 85% RH

• Power Source / Consumption: 100 ~ 240V AC ±10%, 50/60Hz, 4 ~ 1.5A (Dual SMPS) / Max. 217W (546 BTU with 2TB HDD 12ea)
• Warranty: 2 years

Samsung SRN-4000 Overview

Samsung’s SRN-4000 is a 64CH network video recorder that will allow the connection of up to 64 and 5MP cameras, 12 hot swap hard disc drives and redundant power supplies. While supporting high level functions such as RAID 5/6, 4 x gigabit ethernet ports and advanced video motion detection, it also supports a local monitor for ease of use, automatic camera registration, ONVIF cameras and mobile apps for smart phone and tablet connectivity.
