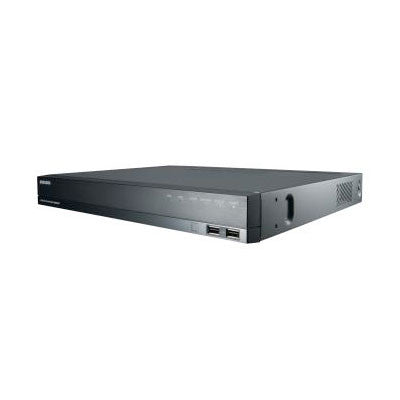

Samsung SRN-873S 8-CH 8-PoE Port NVR

Discontinued; replaced by the XRN-810S.

Samsung SRN-873S Features

• Operating System: Linux

• Camera Compatibility: Samsung & ONVIF-compatible cameras
• Maximum Number of Cameras/Channels: 8 channel selectable
• Recording Bandwidth: Max. 64 Mbps
• Compression Styles: MJPEG, H.264
• Display Layout: [Local monitor] 1 / 4 / 6 / 8 / Auto sequence, [Web] 1 / 4 / 8 / Auto sequence
• Event Notification: E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
• Alarm & Event Management: Alarm input (2), Video loss, Camera event (Alarm in, MD, Video analytics)
• Scheduled Recording: Yes
• Event Recording: Yes
• Manual Recording: Yes
• Recording Frame Rate: CIF to 8MP (depends on number of cameras)
• Remote Access with PC Based Web Browser: Yes
• Mobile App Support: iPOLiS for iOS & Android
• Playback Features: Date & Time (Calendar) / Event log list / Text Search (POS) / Fast/Slow Forward/Backward, Move one step up/down
• Hard Drive Bays: 2 x 3.5" HDD
• Max TB per HD Bay: 6 TB
• USB Ports: 2 in front
• Ethernet Ports: 8 x RJ-45 10/100Mbps Ethernet interface
• Display Port(s): 1 x HDMI, 1 x VGA
• PoE Ports: 8 x PoE/PoE+ (Total 100W available)
• Dimensions (W x H x D): 370.0 x 44.0 x 320.0mm (14.57" x 1.73" x 12.6")
• Weight: 3.4Kg (7.49lb) with 1TB HDD included
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Operating Humidity: 20 ~ 85% RH

• Power Source / Consumption: 100 ~ 240V AC, 50/60Hz / 3 ~ 1.5A / Max. 166W (2 HDD, PoE on), 44W (2 HDD, PoE off)
• Warranty: 2 years

Samsung SRN-873S Overview

The SRN-873S is an easy to use Plug & Play 8-channel NVR. The built in PoE/PoE+ network switch allows cameras to be connected directly to the NVR eliminating the need for additional hardware. Equipped with up to 8Tb of storage allows for long term recording. An HDMI/ VGA monitor can be connected and controlled with USB mouse/IR remote for easy setup and monitoring.
