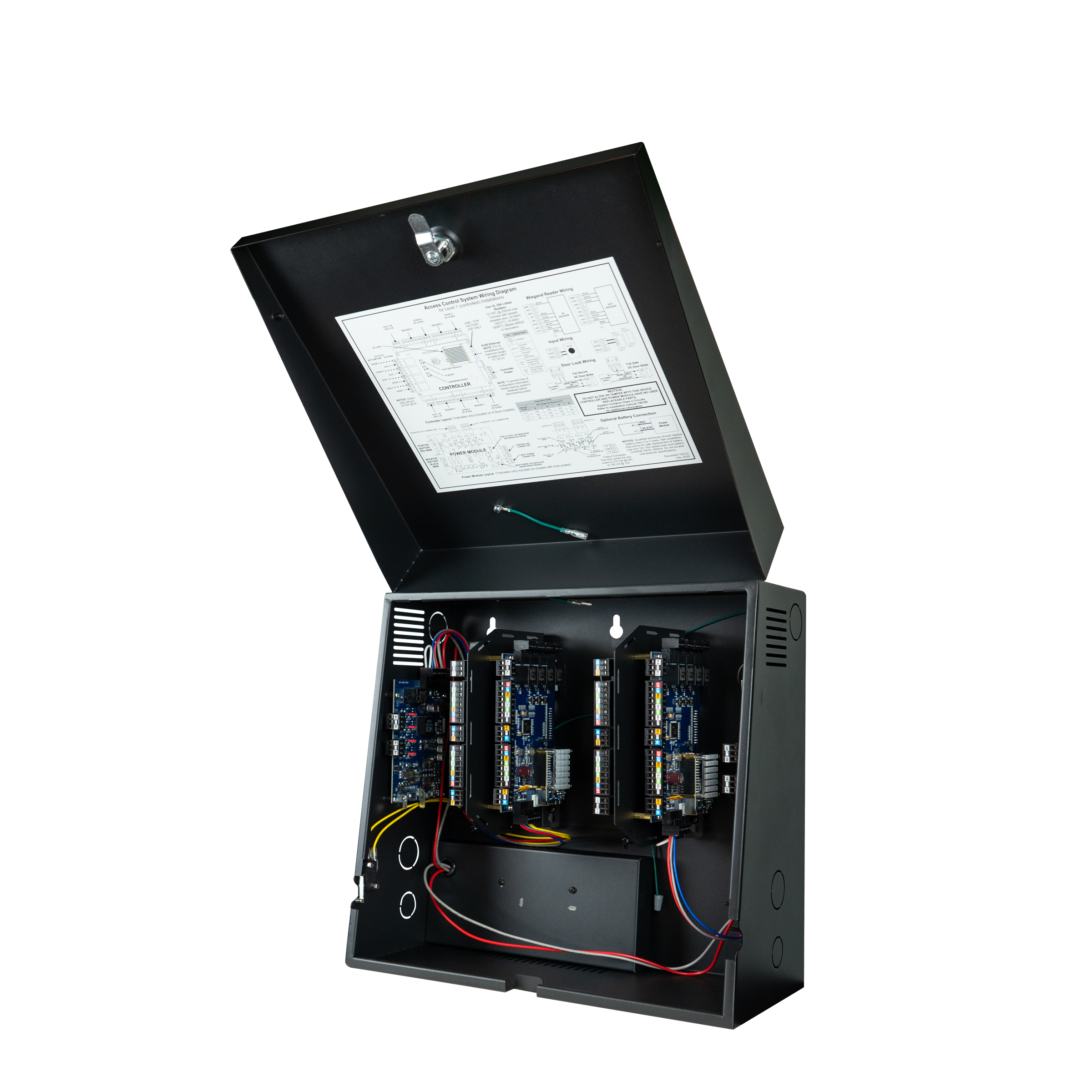

Speco Technologies A8P 8 Door Access Control Panel with Power

8 Door Access Control Panel with Power

• Equivalent to having two A2E4Ps in one can
• Contains two 4-door modules in one housing
• Each module can function as a “Server”, “Client” or “Elevator”
• Integrated 150-Watt power supply for complete system power
• Wedge – Open enclosure design provides easy access to wiring
• Lid removal disconnect pins for fast access to hardware
• Tie downs support dual sided strapping for wire management
• Cut Back Housing allows for wiring accessibility
  and easier to see your work
• Mounting bar has wiring tie down slots for wire management
  on both sides of bar
• ETL – UL 294
• 5 year hardware warranty

Lock Power

• Lock power located on left  / right sides
• 5’ IEC Cord Included
• 8 Auto Resetting Fused Outputs
• Isolated power for readers & controller
• Selectable 12 or 24 VDC per output
• LED status for voltage, power short and fire input triggered
• Fire Drop Input
• Power Supervision – log and action
• Battery Backup (batteries not included)
• Battery Backup for 12- and 24-volt  outputs
