- Supports snapshot, offers effective protection for important data against crypto ransomware.
- Supports high-level data security, AES enterprise-grade encryption, SSL security certificates, and disaster recovery protection.
- Supports log management, allows user to view file access logs.
- Supports multiple file sharing protocols including ISCSI, NFS, AFP, SMB, FTP, WEBDAV.
- Supports flexible permission management and multi-layer protection mechanism.
- Supports smart O&M, advanced device and HDD health monitoring, alert users of potential risks of data loss.
- Supports RAID technology, allows the configuration of one or more backup HDDs.
- High-speed transmission, supports 10Gigabit network interface card.
Video Functions
- Remote access to view live and recorded video anytime.
- Centralized video data storage.
- Supports access of multiple cameras and real-time video viewing.
- Supports centralized device management with rich camera support.
- Enhanced data security with AES encryption to protect video privacy and restrict access permissions.

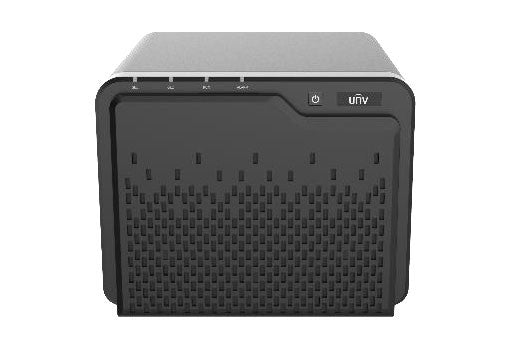

| Model | DX204 |
| OS | Embedded Linux |
| CPU | Intel quad-core X86_64 processor |
| RAM | 4GB DDR4, dual SO-DIMM slots, expandable to 32GB |
| HDD | 4 * SATA3.0 slots, compatible with 3.5-inch or 2.5-inch SATA HDD/SSD |
| Network interface | 2*GE, 1*PCIe 3.0 for expansion to 10Gigabit network |
| HDMI | 1, resolution up to 4096 x 2160@60Hz |
| USB | 2*USB3.0 |
| M.2 HDD slot | 2 (NVMe), with one slot supporting SATA3.0 |
| EMMC | 8GB (standard) |
| Video storage performance | 64*2Mbps |
| Access protocol | Supports Onvif cameras. |
| Dimensions | 226mm (L) × 246mm (W) × 186mm (H) |
| Weight | 3.6 kg (without HDD) |
| Power consumption | 33W (with HDD fully configured) |
| Noise | Room temperature 25°C≤31dB(A) Within the environment’s highest specified limit ≤39.4dB(A) (low power operation mode) |
| Operating temperature | 0°C to +45°C |
| Storage temperature | -20°C to +70°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Storage humidity | 5% to 95% (non-condensing) |
