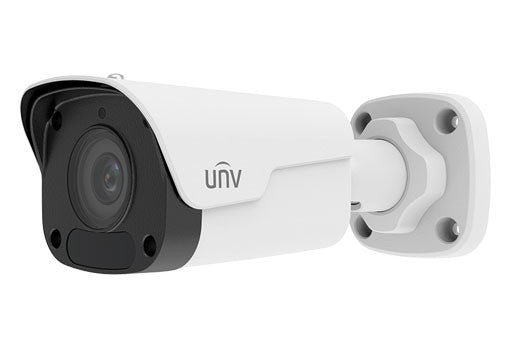

Uniview IPC2124SR3-DPF36 4MP WDR Network Mini IR Bullet Camera(Standard,3.6mm)
4MP WDR Network Mini IR Bullet Camera(Standard,3.6mm)
Optics
Day/night functionality
Smart IR, up to 30m (98ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
SD Card
Compression
Ultra 265, H.265, H.264, MJPEG
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
| IPC2124SR3-ADPF28M-F | IPC2124SR3-ADPF40M-F | |||||||||
| Camera | ||||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | ||||||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | ||||||
| Angle of View (H) | 107.8° | 82.0° | ||||||||
| Angle of View (V) | 57.0° | 41.6° | ||||||||
| Angle of View (O) | 140.1° | 100.9° | ||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||||
| Minimum Illumination | Colour:0.01Lux (F2.0, AGC ON) 0Lux with IR on | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| S/N | >56dB | |||||||||
| IR Range | Up to 30m (98 ft) IR range | |||||||||
| Wavelength | 850nm | |||||||||
| IR On/Off Control | Auto/Manual | |||||||||
| Defog | Digital Defog | |||||||||
| WDR | 120dB | |||||||||
| Video | ||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
| H.264 code profile | Baseline profile, Main Profile | |||||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps | |||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
| OSD | Up to 4 OSDs | |||||||||
| Privacy Mask | Up to 4 areas | |||||||||
| ROI | Up to 2 areas | |||||||||
| Motion Detection | Up to 4 areas | |||||||||
| Image | ||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| Smart IR | Support | |||||||||
| Flip | Normal/Vertical/Horizontal/180° | |||||||||
| Dewarping | NA | |||||||||
| HLC | Supported | |||||||||
| BLC | Supported | |||||||||
| Audio | ||||||||||
| Audio Compression | G.711 | |||||||||
| Suppression | Supported | |||||||||
| Sampling Rate | 8KHZ | |||||||||
| Storage | ||||||||||
| Edge Storage | Micro SD, up to 256GB | |||||||||
| Network Storage | ANR | |||||||||
| Network | ||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||||
| Client | EZStation EZView EZLive | |||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||||
| Interface | ||||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||||
| Built-in Mic | Supported | |||||||||
| Certifications | ||||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||||
| General | ||||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
| Power consumption: Max 6.4W | ||||||||||
| Dimensions (L × W × H) | 165 × 63.1 × 62.5mm (6.5” × 2.5” × 2.5”) | |||||||||
| Net Weight | 0.45kg (0.99lb) | |||||||||
| Material | Metal | |||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Surge Protection | 2KV | |||||||||
| Ingress Protection | IP67 | |||||||||
