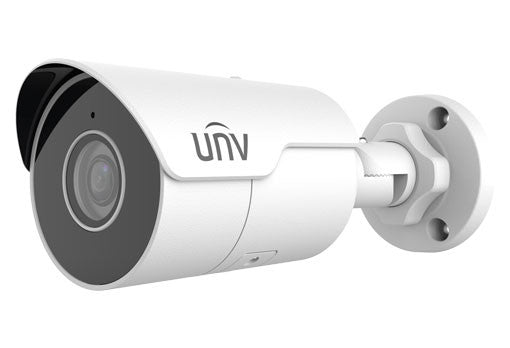

Uniview IPC2125SR5-ADF28KM-G 5MP HD Mini IR Fixed Bullet Network Camera
Uniview IPC2125SR5-ADF28KM-G 5MP HD Mini IR Fixed Bullet Network Camera

Uniview

Uniview IPC2125SR5-ADF28KM-G 5MP HD Mini IR Fixed Bullet Network Camera

$359.00
Discontinued
SKU: IPC2125SR5-ADF28KM-G

Contact

• High quality image with 5MP, 1/2.7"CMOS sensor
• 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Easystar technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 50m (164ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

IPC2125SR5-ADF28KM-G IPC2125SR5-ADF40KM-G
Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6


DORI Distance		 Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
4.0 90.0 36.0 18.0 9.0
Angle Of View (H) 112.9° 91.2°
Angle Of View (V) 59.1° 47.9°
Angle Of View (O) 121.2° 95.9°
Adjustment Angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s

Minimum Illumination		 Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR
S/N >56dB
IR Range Up to 50m (164ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile


Frame Rate		 Main Stream: 5MP (2880*1620), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Smart
Behavior Detection (Cross line, intrusion)based on human body detection, motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Network

Protocols		 IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API

Client		 EZStation EZView EZLive

Web Browser		 Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Network 10/100M Base-TX Ethernet
Built-in Mic Supported
Certifications

Certifications		 CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General

Power		 DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.0W
Dimensions(L × W × H) 190×73×71mm (7.5”×2.9”×2.8”)
Net Weight 0.45kg (0.99lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Ingress Protection IP67
Reset Button N/A
