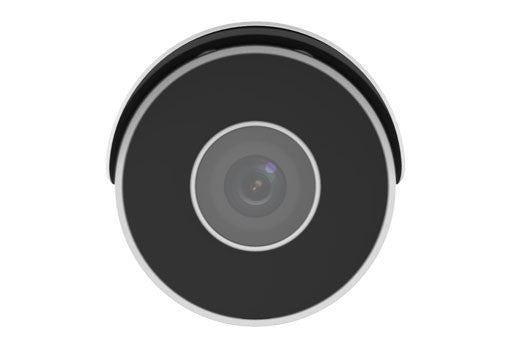

Uniview IPC2128SR3-DPF40 8MP Wide Dynamic Mini Bullet Network Camera
8MP Wide Dynamic Mini Bullet Network Camera
Optics
Day/night functionality
SmartIR, up to 30m (98ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Up to 120dB WDR (Wide Dynamic Range
Compression
Ultra 265,H.265, H.264, MJPEG
Triple streams
9:16 corridor format
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
| IPC2128SR3-DPF40 | IPC2128SR3-DPF60 | ||||||||
| Camera | |||||||||
| Sensor | 1/2.5", 8.0 megapixel, progressive scan, CMOS | ||||||||
| Lens | 4.0mm@F2.0 | 6.0mm@F2.0 | |||||||
| DORI Distance | Lens (mm) | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||||
| 4.0 | 72 | 28.8 | 14.4 | 7.2 | |||||
| 6.0 | 108 | 43.2 | 21.6 | 10.8 | |||||
| Angle of View(H) | 91.6° | 54.2° | |||||||
| Angle of view(V) | 47.2° | 32.5° | |||||||
| Angle of view(O) | 112.7° | 66.7° | |||||||
| Adjustment Range | Pan: 0°~360° | Tilt: 0° ~ 90° | Rotation: 0° ~ 360° | ||||||
| Shutter | Auto/Manual, 1~1/100000s | ||||||||
| Minimum Illumination | Colour: 0.05Lux (F2.0, AGC ON) 0Lux with IR on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| S/N | >52dB | ||||||||
| IR Range | Up to 30m (98ft) IR range | ||||||||
| wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120dB | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| 9:16 Corridor Mode | Supported | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 8 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Motion Detection | Up to 4 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | Support | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Network | |||||||||
| Protocols | IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL,QoS | ||||||||
| Compatible Integration | ONVIF(Profile S, Profile T), API | ||||||||
| Client | EZStation EZView EZLive | ||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||
| Interface | |||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||
| Certifications | |||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 8W | |||||||||
| Dimensions (L × W × H) | 191.3×72.6×70.9mm (7.5”×2.9”×2.8”) | ||||||||
| Net Weight | 0.5kg (1.1lb) | ||||||||
| Material | Metal | ||||||||
| Working Environment | -30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| surge protection | 2KV | ||||||||
| Ingress Protection | IP67 | ||||||||
