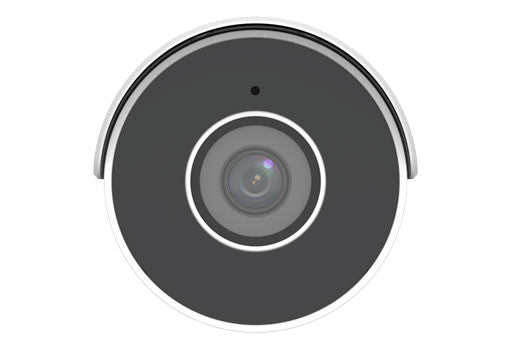

Uniview IPC2128SR5-ADF40KM-G 8MP WDR Network IR Fixed Bullet Camera
• High quality image with 8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 50m (164ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
| IPC2128SR5-ADF28KM-G | IPC2128SR5-ADF40KM-G | ||||||
| Camera | |||||||
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | ||||||
| Minimum Illumination | Support LightHunter: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR on |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||||
| Adjustment angle | Pan: 0° to 360° ,Tilt: 0° to 90° ,Rotate: 0° to 360° | ||||||
| S/N | >56dB | ||||||
| WDR | 120dB | ||||||
| Lens | |||||||
| Lens Type | 2.8mm and 4.0mm @1.6, Fixed-focal | ||||||
| Lens Mount | M12 | ||||||
| Angle of View (H) | 112.9° | 91.2° | |||||
| Angle of View (V) | 59.1° | 47.9° | |||||
| Angle of View (D) | 121.2° | 95.9° | |||||
| DORI | |||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
| 2.8mm | 84 | 33.6 | 16.8 | 8.4 | |||
| 4.0mm | 120 | 48 | 24 | 12 | |||
| Illuminator | |||||||
| IR Range | Up to 50m (164 ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline Profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| U-code | Supported | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | N/A | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| Defog | Digital Defog | ||||||
| Events | |||||||
| Basic Detection | Cross line, intrusion(based on human body detection) | ||||||
| motion detection, tampering alarm, audio detection | |||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR, NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||
| Client | EZStation EZView EZLive |
||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||||
| Interface | |||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Built-in Mic | Supported | ||||||
| Certification | |||||||
| EMC | FCC: FCC Part 15 | ||||||
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
||||||
| General | |||||||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | ||||||
| Power consumption: Max 6.5W | |||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||
| Dimensions (L × W × H) | 190×73×71mm (7.5”×2.9”×2.8”) | ||||||
| Weight | 0.45kg (0.99lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | ||||||
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | ||||||
| Surge Protection | 4KV | ||||||
| Reset Button | Supported | ||||||
| Ingress Protection | Ingression protection: IP67 | ||||||
