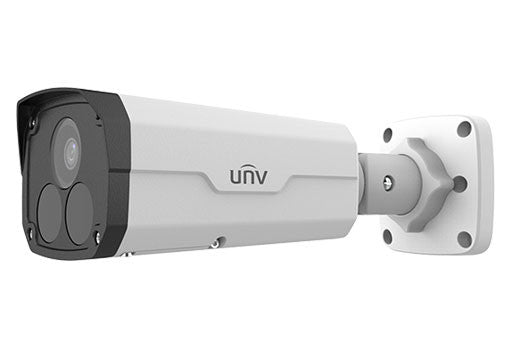

Uniview IPC2224SA-DF60K 4MP DeepSight Fixed Bullet Camera, 6.0mm
Optics
1/1.8’’, Powered by lighthunter Smart IR, up to 50m (164 ft) IR distance Up to 120 dB Optical WDR (Wide Dynamic Range)
Smart
People Counting, support tripwire people counting and area people counting Perimeter Protection, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection Exception Detection and Statistics, include Object Removed, Object Left Behind, Defocus, Scene Change
Compression
Ultra 265, H.265, H.264, MJPEG Five streams 2688*1520@30fps in the main stream ROI (Region of Interest)
Network
ONVIF Conformance
Structure
DC12V or PoE power supply Wide voltage range of ±25% in DC Micro SD, up to 256 GB Alarm 1 in and 1 out, Audio 1 in and 1 out IP67 ingress protection IK10 vandal resistant
| IPC2224SA-DF40K | IPC2224SA-DF60K | |||||
| Camera | ||||||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | |||||
| Lens | 4mm@F1.6, fixed aperture lens | 6mm@F1.6, fixed aperture lens | ||||
| Iris | Fix aperture | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 4 | 60.0(196.9ft) | 24.0(78.7ft) | 12.0(39.4ft) | 6.0(19.7ft) | ||
| 6 | 90.0(295.3ft) | 36.0(118.1ft) | 18.0(59.1ft) | 9.0(29.5ft) | ||
| Field of View (H) | 94.7° | 68.1° | ||||
| Field of View (V) | 49.6° | 41.6° | ||||
| Field of View (D) | 116.5° | 83.8° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Min. Illumination | Colour:0.001lux (F1.6, AGC ON) 0 lux with IR | |||||
| WDR | 120dB | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| S/N | >56dB | |||||
| IR Range | Up to 50m (164 ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| Video | ||||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | |||||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 2MP(1920*1080),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Forth Stream: D1 (720*576), Max 30fps; Fifth Stream: D1 (720*576), Max 30fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| ROI | Supported | |||||
| Video stream | Five streams | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 8 areas(8 blacks/4 mosaics+4 blacks) | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Smart | ||||||
| Smart intrusion Prevention | Support false alarm filtering, Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection ; Motion detection ; | |||||
| Exception Detection And Statistics | Object Removed, Object Left Behind, Scene Change | |||||
| Statistical Analysis | People counting, support tripwire people counting and area people counting | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U,G.711A | |||||
| Two way audio | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256 GB | |||||
| Network Storage | ANR,NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
| Client | EZStation Ezview EZLive | |||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Interface | ||||||
| Audio I/O | Audio cable | |||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | ||||||
| Alarm I/O | 1/1 | |||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||
| Certifications | ||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||
| General | ||||||
| Power | DC12V(±25%), PoE(IEEE802.3af) | |||||
| Power consumption: Max 9W | ||||||
| Support overcurrent protection and input short circuit protection | ||||||
| Dimensions (Ø x H) | Φ245.6x85.7x85.4mm(Φ12.1’’x3.4’’x3.4’’) | |||||
| Net Weight | 0.90kg(1.98lb) | |||||
| Material | Metal | |||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge protection | 6KV | |||||
4MP DeepSight Fixed Bullet Camera, 6.0mm
