Uniview

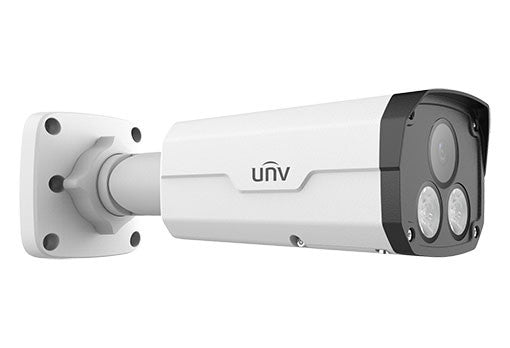

Uniview IPC2225SE-DF40K-WL-I0 5MP White Light Bullet(Standard,Wide Dynamic,Premier Protection
Quantity:
5MP White Light Bullet(Standard,Wide Dynamic,Premier Protection,4.0mm,PoE,Mic,30m IR)
• High quality image with 5MP, 1/2.7"CMOS sensor
• 5MP (2880*1620)@25fps; 4MP (2560*1440)@25fps;3MP (2304*1296)@25fps; 2MP (1920*1080)@ 30/25fps;;
• Ultra 265, H.265, H.264, MJPEG
• Colorhunter technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Supports 256 G micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
| IPC2225SE-DF40K-WL-I0 | IPC2225SE-DF60K-WL-I0 | ||||||||
| Camera | |||||||||
| Sensor | 1/2.7″, 5.0 megapixel, progressive scan, CMOS | ||||||||
| Lens | 4.0mm@F1.0 | 6.0mm@F1.0 | |||||||
| DORI Distance | Lens (mm) | Detect（m） | Observe（m） | Recognize（m） | Identify（m） | ||||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |||||
| 6.0 | 135.0 | 54.0 | 27.0 | 13.5 | |||||
| Angle of View (H) | 80.2° | 53.4° | |||||||
| Angle of View (V) | 43.0° | 29.2° | |||||||
| Angle of View (O) | 94.7° | 61.6° | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Minimum Illumination | Colour: 0.001Lux (F1.0, AGC ON) | ||||||||
| S/N | >56dB | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120dB | ||||||||
| LEDs Number | 2 | ||||||||
| LED Distance | Up to 30m (98ft) | ||||||||
| Video | |||||||||
| Video Compression | Ultra265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| 9:16 Corridor Mode | Supported | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart Illumination | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | N\A | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Audio | |||||||||
| Audio Compression | G.711 | ||||||||
| Two-way audio | Supported | ||||||||
| Suppression | Supported | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
| Client | EZStation EZView EZLive | ||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||
| Interface | |||||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||||
| Alarm I/O | 1/1 | ||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||
| Certifications | |||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 9.0W | |||||||||
| Dimensions (L × W × H) | 246× 86 × 85mm (9.7” × 3.4” × 3.3”) | ||||||||
| Net Weight | 0.92kg (2.02lb) | ||||||||
| Material | Metal | ||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| surge protection | 4KV | ||||||||
| Ingress Protection | IP67 | ||||||||
| Vandal Resistant | IK10 | ||||||||
| Reset Button | N\A | ||||||||
