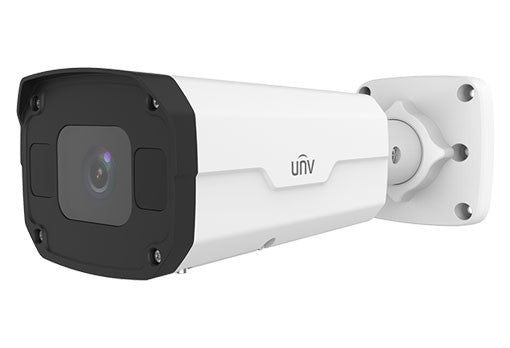

Uniview IPC2324SB-DZK-I0 4MP Motorized VF Network IR Bullet Camera(2.8-12mm
Quantity:
4MP Motorized VF Network IR Bullet Camera(2.8-12mm,WDR,PoE,RJ45,SD Slot,Full cable,Bracket)
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 25fps; 4MP (2560*1440)@ 25fps; 3MP (2304*1296) @25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 50m (164ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
| IPC2324SB-DZK-I0 | |||||||
| Camera | |||||||
| Sensor | 1/3", 4.0megapixel, progressive scan, CMOS | ||||||
| Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.7 | 60.8 | 24.3 | 12.2 | 6.1 | |||
| 13.5 | 303.8 | 121.5 | 60.8 | 30.4 | |||
| Angle of view (H) | 98.26°~ 31.35° | ||||||
| Angle of View (V) | 54.76°~ 18.55° | ||||||
| Angle of View (O) | 127.74°~36.99° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR on | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >56 dB | ||||||
| IR Range | Up to 50m (164ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | N/A | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way Audio | Supported | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR, NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Client | EZStation EZView EZLive | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
| Interface | |||||||
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| 1 Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Certifications | |||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 8.5W | |||||||
| Dimensions (L × W × H) | 245.4 × 85.4 × 86.4mm (9.7” × 3.4” × 3.4”) | ||||||
| Net Weight | 0.92kg (2.03lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 6KV | ||||||
| Ingress Protection | IP67 | ||||||
| Vandal Resistant | IK10 | ||||||
| Reset Button | N/A | ||||||
