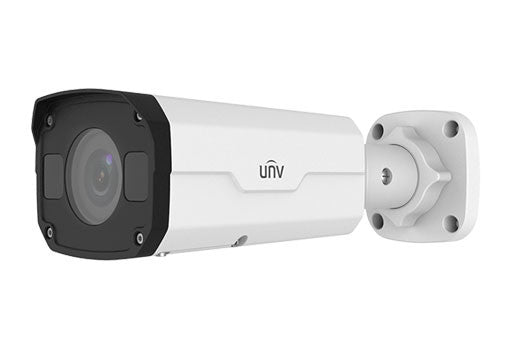

Uniview IPC2324SBR5-DPZ-F 4MP Motorized VF Network IR Bullet Camera(2.8-12mm
4MP Motorized VF Network IR Bullet Camera(2.8-12mm,WDR,PoE,RJ45,SD Slot,Full cable,Bracket)
Optics
Day/night functionality
Smart IR, up to 50m (164ft) IR distance
Up to 120 dB Optical WDR (Wide Dynamic Range)
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
ROI (Region of Interest)
Customized OSD
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
IPC2324SBR5-DPZ-F | |||||||
Camera | |||||||
Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||
Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||
12 | 270.0 | 108.0 | 54.0 | 27.0 | |||
Angle of View (H) | 98.26°~ 31.35° | ||||||
Angle of View (V) | 54.76°~ 18.55° | ||||||
Angle of View (O) | 127.74°~36.99° | ||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on | ||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
S/N | >56 dB | ||||||
IR Range | Up to 50m (164ft) IR range | ||||||
Wavelength | 850nm | ||||||
IR On/Off Control | Auto/Manual | ||||||
Defog | Digital Defog | ||||||
WDR | 120dB | ||||||
Video | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
H.264 code profile | Baseline profile, Main Profile | ||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps | ||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||
OSD | Up to 4 OSDs | ||||||
Privacy Mask | Up to 4 areas | ||||||
ROI | Up to 2 areas | ||||||
Motion Detection | Up to 4 areas | ||||||
Image | |||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
Smart IR | Support | ||||||
Flip | Normal/Vertical/Horizontal/180° | ||||||
Dewarping | NA | ||||||
HLC | Supported | ||||||
BLC | Supported | ||||||
Audio | |||||||
Audio Compression | G.711 | ||||||
Suppression | Supported | ||||||
Sampling Rate | 8KHZ | ||||||
Storage | |||||||
Edge Storage | Micro SD, up to 256GB | ||||||
Network Storage | ANR | ||||||
Network | |||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
Client | EZStation EZView EZLive | ||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
Interface | |||||||
Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
Alarm I/O | 1/1 | ||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
Certifications | |||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||
General | |||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
Power consumption: Max 9.5W | |||||||
Dimensions (L × W × H) | 240.3 × 86.4 × 75.6mm (9.5” × 3.4” × 3.0”) | ||||||
Net Weight | 1.0kg (2.2lb) | ||||||
Material | Metal | ||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Surge Protection | 6KV | ||||||
Ingress Protection | IP67 |
