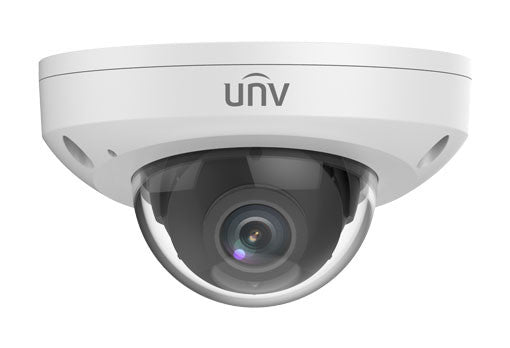

Uniview IPC312SB-ADF28K-I0 2MP HD LightHunter IR Fixed Mini Dome Camera
Quantity:
• High quality imaging with 2MP, 1/2.8"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear imaging in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
| IPC312SB-ADF28K-I0 | |||||||
| Camera | |||||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||||
| Minimum Illumination | Colour: 0.001Lux (F1.6, AGC ON) 0Lux with IR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0° ~ 90° | Tilt: 0° ~ 68° | Rotate: 0° ~ 360° | ||||
| WDR | 120dB | ||||||
| S/N | ≥52dB | ||||||
| Lens | |||||||
| Lens | 2.8mm@F1.6 | ||||||
| Angle of View (H) | 106.7° | ||||||
| Angle of View (V) | 57.1° | ||||||
| Angle of View (O) | 115.7° | ||||||
| DORI | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 43.4 | 17.4 | 8.7 | 4.3 | |||
| Illuminator | |||||||
| IR Range | Up to 30m (98ft) IR range | ||||||
| wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps;720P(1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| U-code | Support | ||||||
| ROI | Up to 8 areas | ||||||
| Video Stream | Triple streams | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | N/A | ||||||
| BLC | Supported | ||||||
| HLC | Supported | ||||||
| Defog | Digital Defog | ||||||
| Audio | |||||||
| Audio Compression | G.711 |
| Audio Bitrate | 64 Kbps |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | ||
| Edge Storage | Micro SD, Up to 256GB | |
| Network Storage | ANR, NAS(NFS) | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH,SSL/TLS | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |
| Client | EZStation EZView EZLive | |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | ||
| Interface | ||
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |
| 1 Output: impedance 600Ω; amplitude 2V [p-p] | ||
| Alarm I/O | N/A | |
| RS485 | N/A | |
| Built-in Mic | Support | |
| Built-in Speaker | N/A | |
| WIFI | N/A | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |
| Video Output | N/A | |
| Certifications | ||
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 | |
| Safety | IEC 62368-1 EN 62368-1 UL 62368-1 | |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | |
| General | ||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |
| Power consumption: Max 6.0W | ||
| Power Interface | Ø 5.5mm coaxial power plug | |
| Dimensions (Ø x H) | Φ110 x 61mm (Ø4.3” x 2.4”) | |
| Weight | 0.37kg (0.82lb) | |
| Material | Metal | |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| surge protection | 4KV | |
| Reset Button | N/A | |
| Protection | Ingression protection: IP67 Vandal resistant: IK10 | |
