Uniview

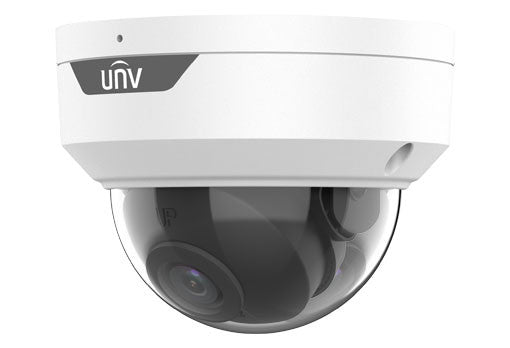

Uniview IPC322LB-AF28WK-G Uniview 2MP WiFi IP Vandal Dome Camera
Quantity:
Uniview 2MP WiFi IP Vandal Dome Camera, 1/2.9" CMOS, Ultra265, H.265, H.264, MJPEG, Built In MIC, 1920x1080@30FPS, MicroSD Card Slot up to 128GB, IP67, IK10, AOV 101.1°, Human Body Detection, ONVIF, 2.4GHz-2.4835GHz, 12VDC Power, 100IR, NDAA
| IPC322LB-AF28WK-G | ||||||
| Camera | ||||||
| Sensor | 1/2.9", progressive scan , 2.0 megapixel, CMOS | |||||
| Min. Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0 Lux with IR |
|||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||
| Adjustment angle | Pan: 0°~352°, Tilt: 0°~70° , Rotate: 0°~350° | |||||
| S/N | >52dB | |||||
| WDR | DWDR | |||||
| Lens | ||||||
| Lens Type | 2.8mm @2.0, Fixed-focal | |||||
| Lens Mount | M12 | |||||
| Angle of view(H) | 101.1° | |||||
| Angle of View (V) | 55.0° | |||||
| Angle of View (O) | 111.0° | |||||
| DORI | ||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |
| 2.8mm | 45.0 | 18.0 | 9.0 | 4.5 | ||
| Illuminator | ||||||
| IR Range | Up to 30m (98 ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||
| Video Bit Rate | 128 Kbps~6 Mbps | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Supported | |||||
| Flip | Normal/Vertical/Horizontal/180° | |||||
| Dewarping | N/A | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Defog | Digital Defog | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 128GB | |||||
| Network Storage | ANR,NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | |||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | EZStation EZView EZLive |
|||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | ||||||
| Wi-Fi | ||||||
| Wireless Standards | IEEE802.11b/g/n | |||||
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |||||
| Wireless Range | Up to 120 m (The performance varies based on actual environment) | |||||
| Channel Bandwidth | 20 MHz Support | |||||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT |
|||||
| Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | |||||
| Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @54Mbps 802.11n: 12.5±1.5dBm @150Mbps |
|||||
| Receive Sensitivity | 802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps(Typical) |
|||||
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps |
|||||
| Interface | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Built-in Mic | Supported | |||||
| Certification | ||||||
| EMC | FCC: FCC Part 15 | |||||
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
|||||
| General | ||||||
| Power | DC 12V±25% | |||||
| Power consumption: Max 4.0W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (Ø x H) | Φ109 x 83 mm (Ø4.29” x 3.3”) | |||||
| Weight | 0.32 kg (0.71 lb) | |||||
| Material | Metal + Plastic | |||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) | |||||
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) | |||||
| Surge Protection | 4KV | |||||
| Reset Button | Supported | |||||
| Ingress Protection | Ingression protection: IP67 Vandal resistant: IK10 |
|||||
