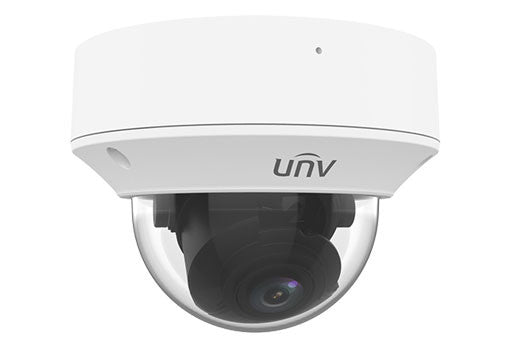

Uniview IPC3232SB-ADZK-I0 2MP HD LightHunter IR VF Dome Network Camera
Uniview IPC3232SB-ADZK-I0 2MP HD LightHunter IR VF Dome Network Camera

Uniview

Uniview IPC3232SB-ADZK-I0 2MP HD LightHunter IR VF Dome Network Camera

$509.00
Discontinued
SKU: IPC3232SB-ADZK-I0

Contact

• High quality image with 2MP, 1/2.8"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply

IPC3232SB-ADZK-I0
Camera
Sensor 1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.7 41.9 16.8 8.4 4.2
13.5 209.5 83.8 41.9 20.9
Angle of View (H) 107.4°~ 29.2°
Angle of View (V) 54.2°~ 16.3°
Angle of View (O) 111.0°~33.1°
Adjustment angle Pan: 0° ~ 355° Tilt: 0° ~ 80° Rotate:0° ~ 355°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.0005Lux (F1.2, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
IR Range Up to 40m (131ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Two-way Audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O 1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Built-in Mic Supported
Network 1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.0W
Dimensions (Ø x H) Φ148.0 x 111.4mm (Φ5.8’’ x4.4’’)
Net Weight 0.97kg (2.14lb)
Material Metal + Plastic
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported
