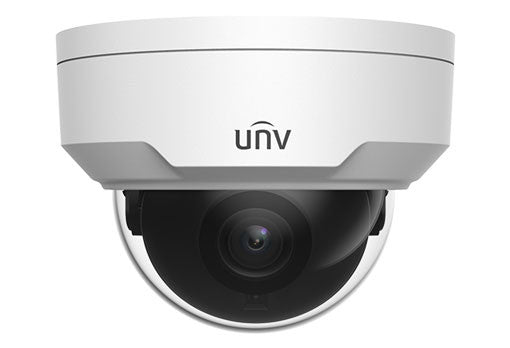

Uniview IPC324LE-DSF40K-G 4MP HD Vandal-resistant IR Fixed Dome Network Camera
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Easystar technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
• 3-Axis
| IPC324LE-DSF28K-G | IPC324LE-DSF40K-G | |||||||
| Camera | ||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | ||||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | ||||
| Angle of view (H) | 101.1° | 83.7° | ||||||
| Angle of View (V) | 55.3° | 44.9° | ||||||
| Angle of View (O) | 111.1° | 89.2° | ||||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >56dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Supported | |||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| Dewarping | N/A | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Client | EZStation EZView EZLive | |||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 256 GB | |||||||
| Network Storage | ANR,NAS(NFS) | |||||||
| Interface | ||||||||
| Network | 10/100M Base-TX Ethernet | |||||||
| Certifications | ||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max5.5W | ||||||||
| Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) | |||||||
| Net Weight | 0.35kg (0.77lb) | |||||||
| Material | Metal + Plastic | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 4KV | |||||||
| Ingress Protection | IP67 | |||||||
| Vandal Resistant | IK10 | |||||||
| Reset Button | N/A | |||||||
