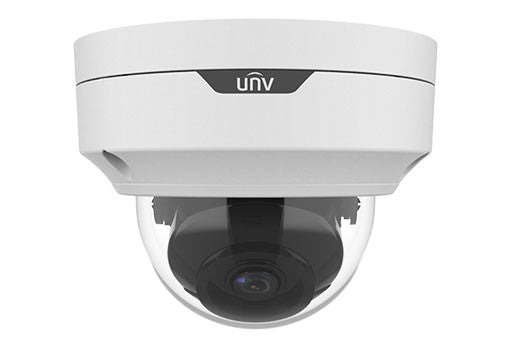

Uniview IPC3534SA-DF28K 4MP LightHunter Intelligent Vandal-resistant Dome Network Camera
• 1/1.8" progressive scan CMOS
• Up to 2688×1520 resolution,30fps;
• 2.8mm/4.0mm optional
• Ultra 265,H.265
• Smart IR, up to 50m IR distance
• 120dB True WDR
• 2D/3D DNR, ROI,ONVIF
• DC12V, Wide voltage range of ±25%
• IP67
• IK10
• PoE(IEEE 802.3af)
| IPC3534SA-DF28K | IPC3534SA-DF40K | |||||||
| Camera | ||||||||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | ||||||
| Iris | Fixed | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 42.0(137.8ft) | 16.8(55.1ft) | 8.4(27.6ft) | 4.2(13.8ft) | ||||
| 4.0 | 60.0(196.9ft) | 24.0(78.7ft) | 12.0(39.4ft) | 6.0(19.7ft) | ||||
| Angle of View (H) | 103.8° | 94.7° | ||||||
| Angle of View (V) | 57° | 49.6° | ||||||
| Angle of View (O) | 134.9° | 116.5° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment angle | Pan: 0°~355° | Tilt: 0°~70° | Rotate: 0°~355° | |||||
| Min. Illumination | Colour:0.001lux (F1.6, AGC ON) 0 lux with IR | |||||||
| WDR | 120dB | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| IR Range | Up to 50m (164 ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| ROI | Supported | |||||||
| Video stream | Triple streams | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas(8 blacks/4 mosaics+4 blacks) | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Smart | ||||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U,G.711A | |||||||
| Two-way Audio | Supported | |||||||
| Suppression | Supported | |||||||
| Sampling Rate | 8KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 256 GB | |||||||
| Network Storage | ANR,NAS(NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Client | EZStation EZLive Ezview | |||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
| Interface | ||||||||
| Audio I/O | Audio cable | |||||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | ||||||||
| Alarm I/O | 1/1 | |||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||
| Certification | ||||||||
| Certifications | CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15 | |||||||
| General | ||||||||
| Power | DC12V(±25%), PoE(IEEE 802.3af) | |||||||
| Power consumption: Max 8.3W | ||||||||
| Support overcurrent protection, Input short circuit protection | ||||||||
| Dimensions (Ø x H) | Φ128.1 x 99.9mm(Φ5.04" x 3.93") | |||||||
| Weight | 0.59kg(1.3lb) | |||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge protection | 6KV | |||||||
| Vandal Resistant | IK10 | |||||||
| Ingress Protection | IP67 | |||||||
