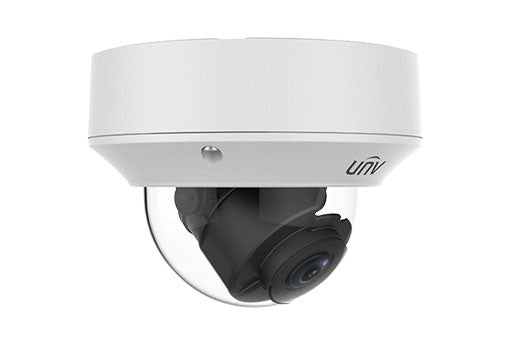

Uniview IPC3615ER3-ADUPF28M 5MP Starlight WDR Network IR Fixed Dome(2.8mm,PoE
5MP Starlight WDR Network IR Fixed Dome(2.8mm,PoE,Metal,30m IR)
Optics
Day/night functionality
SmartIR, up to 30 m (98 ft) IR distance
Up to 120 dB OpticalWDR(Wide Dynamic Range)
LightHunter
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265,H.265, H.264, MJPEG
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Network
ONVIF Conformance
Structure
Support PoE power supply
Built-in PoE splitter that outputs DC 12V
Wide temperature range: -40°C to 60°C (-40°F to 140°F)
Wide voltage range of ±25%
IK10 vandal resistant
IP67
3-Axis
| IPC3232ER3-DUVZ | ||||||||||
| Camera | ||||||||||
| Sensor | 1/2.8", progressive scan ,2.0 megapixel, CMOS | |||||||||
| Lens | 2.8~12 mm@F1.4 | |||||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||||
| 2.8mm | 41.9 | 16.8 | 8.4 | 4.2 | ||||||
| 12mm | 209.5 | 83.8 | 41.9 | 20.9 | ||||||
| Angle of View (H) | 105°~33° | |||||||||
| Angle of View (V) | 58.4°~14.9° | |||||||||
| Angle of View (O) | 136.5°~40.6° | |||||||||
| Adjustmentangle | Pan: 0°~360° | Tilt: 0°~80° | Rotate:0°~360° | |||||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||||||
| Minimum Illumination | Colour: 0.001 Lux (F1.4, AGC ON) 0Lux with IR | |||||||||
| IR Range | Up to 30m (98 ft) IR range | |||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| wavelength | 850nm | |||||||||
| IR On/Off Control | Auto/Manual | |||||||||
| S/N | >52dB | |||||||||
| WDR | 120dB | |||||||||
| Video | ||||||||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | |||||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||||
| Frame Rate | Main Stream:2MP (1920×1080): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps | |||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
| 9:16 Corridor Mode | Supported | |||||||||
| OSD | Up to 8 OSDs | |||||||||
| Privacy Mask | Up to 8 areas | |||||||||
| ROI | Up to 8 areas | |||||||||
| Motion Detection | Up to 4 areas | |||||||||
| Image | ||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| Smart IR | Support | |||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||
| Dewarping | Support | |||||||||
| HLC | Support | |||||||||
| BLC | Support | |||||||||
| Audio | ||||||||||
| Audio Compression | G.711 | |||||||||
| Two-way audio | Supported | |||||||||
| Suppression | Supported | |||||||||
| Sampling Rate | 8 KHZ | |||||||||
| Storage | ||||||||||
| Edge Storage | Micro SD, up to 256 GB | |||||||||
| Network Storage | ANR, NAS(NFS) | |||||||||
| Network | ||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||||||
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T),API | |||||||||
| Client | EZStation EZView EZLive | |||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||||
| Interface | ||||||||||
| Audio I/O | Audio cable | |||||||||
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | ||||||||||
| Output: impedance 600 Ω; amplitude 2 V [p-p] | ||||||||||
| Alarm I/O | 1/ 1 | |||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||||
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] | |||||||||
| Power Output | DC12V Power Output With PoE | |||||||||
| Certifications | ||||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||||
| General | ||||||||||
| Power | DC12V±25%,PoE (IEEE802.3 af) | |||||||||
| Power consumption: Max.7.2 W (PoE :Max.8.2 W) | ||||||||||
| Dimensions (Ø x H) | Φ148 x 111.3 mm (Ø5.8” x 4.4”) | |||||||||
| Net Weight | 0.92 kg (2.0 lb) | |||||||||
| Material | Metal + Plastic | |||||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Strorage Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| surge protection | 6KV | |||||||||
| Ingress Protection | IP67 | |||||||||
| Vandal Resistant | IK10 | |||||||||
| Reset Button | Supported | |||||||||
