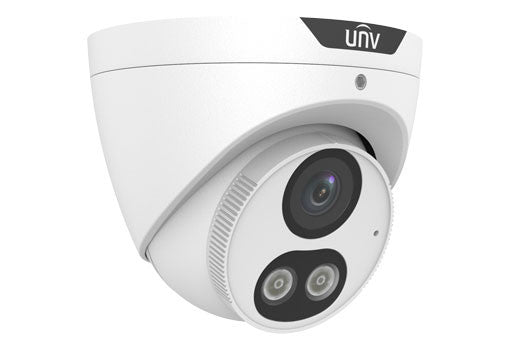

Uniview IPC3615SE-ADF28KM-WL-I0 5MP White Light Turret(2.8mm,PoE,Metal,30m IR) (UNI-IPC3615SE-ADF28KM-WL-I0)
Uniview IPC3615SE-ADF28KM-WL-I0 5MP White Light Turret(2.8mm,PoE,Metal,30m IR)

Uniview

Uniview IPC3615SE-ADF28KM-WL-I0 5MP White Light Turret(2.8mm,PoE,Metal,30m IR)

$369.00
SKU: IPC3615SE-ADF28KM-WL-I0
Quantity:

Contact

5MP White Light Turret(2.8mm,PoE,Metal,30m IR)

• High quality image with 5MP, 1/2.7"CMOS sensor
• 5MP (2880*1620)@25fps; 4MP (2560*1440)@25fps;3MP (2304*1296)@25fps; 2MP (1920*1080)@ 30/25fps;;
• Ultra 265, H.265, H.264, MJPEG
• Colorhunter technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 corridor Mode
• Support built-in Mic
• Support 256 G Micro SD card
• IP67 protection
• Support PoE power supply

IPC3615SE-ADF28KM-WL-I0 IPC3615SE-ADF40KM-WL-I0
Camera
Sensor 1/2.7″, 5.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.0 4.0mm@F1.0
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
4.0 90.0 36.0 18.0 9.0
Angle of view(H) 102.0° 80.2°
Angle of View (V) 53.4° 43.0°
Angle of View (O) 121.0° 94.7°
Adjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 80° Rotate: 3° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.001Lux (F1.0, AGC ON)
S/N >56dB
Defog Digital Defog
WDR 120dB
LEDs Number 2
LED Distance Up to 30m (98ft)
Video
Video Compression Ultra265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart Illumination Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N\A
HLC Support
BLC Support
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Built-in Mic Supported
Network 1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.5W
Dimensions (Ø x H) Φ110.5 x 94.1mm (Ø4.4” x 3.7”)
Net Weight 0.44kg (0.97lb)
Material metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection 2KV
Ingress Protection IP67
