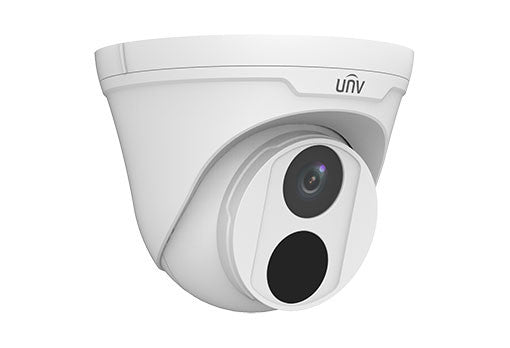

Uniview IPC3618LR3-DPF28-F Easy 8MP WDR Fixed Lens Dome 2.8mm
Easy 8MP WDR Fixed Lens Dome 2.8mm
Optics
Day/night functionality
Smart IR, up to 30 m (98 ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265,H.265,H.264,MJPEG
Triple streams
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
| IPC3618LR3-DPF28-F | IPC3618LR3-DPF40-F | |||||||||
| Camera | ||||||||||
| Sensor | 1/3", 8.0 megapixel, progressive scan, CMOS | |||||||||
| Lens | 2.8mm@F2.0 | 4.0mm@2.0 | ||||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||||
| 2.8mm | 84 | 33.6 | 16.8 | 8.4 | ||||||
| 4.0mm | 120 | 48 | 24 | 12 | ||||||
| Angle of view(H) | 112.7° | 86.5° | ||||||||
| Angle of View (V) | 60.1° | 44.1° | ||||||||
| Angle of View (O) | 146.5° | 106.4° | ||||||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~80° | Rotate:0°~360° | |||||||
| Min. Illumination | Colour: 0.05 Lux (2.0, AGC ON) 0 Lux with IR |
|||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| S/N | >56dB | |||||||||
| IR Range | Up to 30m (98 ft) IR range | |||||||||
| Wavelength | 850nm | |||||||||
| IR On/Off Control | Auto/Manual | |||||||||
| Defog | Digital Defog | |||||||||
| WDR | 120dB | |||||||||
| Video | ||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
| H.264 code profile | Baseline Profile, Main Profile | |||||||||
| Frame Rate | Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps Sub Stream:720P (1280*720): Max. 20 fps Third Stream:4CIF (704*576): Max. 20 fps |
|||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
| OSD | Up to 4 OSDs | |||||||||
| Privacy Mask | Up to 4 areas | |||||||||
| ROI | Up to 2 areas | |||||||||
| Motion Detection | Up to 4 areas | |||||||||
| Image | ||||||||||
| White Balance | Auto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2 | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| Smart IR | Support | |||||||||
| Flip | Normal/Vertical/Horizontal/180° | |||||||||
| Dewarping | NA | |||||||||
| HLC | Supported | |||||||||
| BLC | Supported | |||||||||
| Network | ||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS | |||||||||
| Compatible Integration | ONVIF (Profile S+ Profile T), API | |||||||||
| Client | EZStation EZView EZLive |
|||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||||
| Interface | ||||||||||
| Network | 10/100M Base-TX Ethernet | |||||||||
| Certifications | ||||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||||||
| General | ||||||||||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | |||||||||
| Power consumption: Max 5W | ||||||||||
| Dimensions (Ø x H) | Φ118×96mm (Φ4.6”×3.8”) | |||||||||
| Net Weight | 0.33kg (0.73lb) | |||||||||
| Material | Metal + Plastic | |||||||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | |||||||||
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | |||||||||
| Surge Protection | 2KV | |||||||||
| Ingress Protection | IP67 | |||||||||
