Uniview IPC3618SB-ADF28KM-I0 8MP LightHunter WDR Network IR Fixed Dome(2.8mm,Premier Protection (UNI-IPC3618SB-ADF28KM-I0)
Uniview IPC3618SB-ADF28KM-I0 8MP LightHunter WDR Network IR Fixed Dome(2.8mm,Premier Protection

Uniview

Uniview IPC3618SB-ADF28KM-I0 8MP LightHunter WDR Network IR Fixed Dome(2.8mm,Premier Protection

Sale price$409.00
SKU: IPC3618SB-ADF28KM-I0
Quantity:

Contact

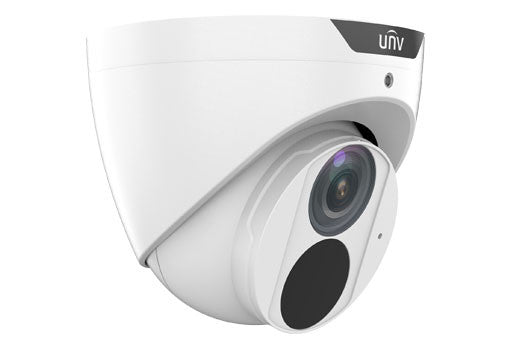

8MP LightHunter WDR Network IR Fixed Dome(2.8mm,Premier Protection,PoE,Metal,30m IR)

• High quality image with 8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply

IPC3618SB-ADF28KM-I0 IPC3618SB-ADF40KM-I0
Camera
Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0 4.0mm@F2.0
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 84.0 33.6 16.8 8.4
4.0 120.0 48.0 24.0 12.0
Angle of View (H) 112.4° 86.5°
Angle of View (V) 60.1° 44.1°
Angle of View (O) 146.1° 112.5°
Adjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 80° Rotate: 3° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on
Digital Noise Reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >56dB
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Supported
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.0W
Dimensions (L × W × H) Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
Net Weight 0.44kg (0.97lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button N/A
