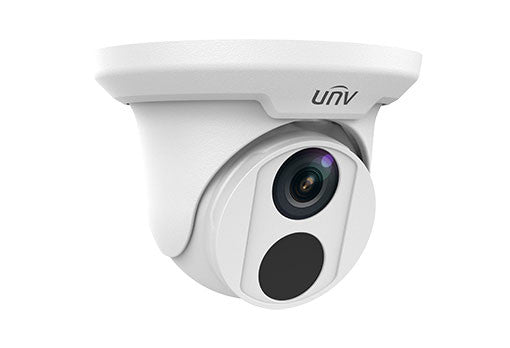

Uniview IPC3618SR3-DPF28M 8MP WDR Network IR Fixed Turret Camera
Discontinued - recommended replacement: IPC3618SB
8MP WDR Network IR Fixed Turret Camera
Optics
Day/night functionality
Smart IR , up to 30m (98ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Up to 120dB WDR (Wide Dynamic Range
Compression
Ultra 265, H.264, MJPEG
Triple streams
9:16 corridor format
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
| IPC3618SR3-DPF28M | IPC3618SR3-DPF40M | ||||||||
| Camera | |||||||||
| Sensor | 1/2.5", 8.0 megapixel, progressive scan, CMOS | ||||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | |||||||
| Angle of view (H) | 118.1° | 91.6° | |||||||
| Angle of view (V) | 64.0° | 47.2° | |||||||
| Angle of view (O) | 153.5° | 112.7° | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 50.4 | 20.2 | 10.1 | 5.0 | |||||
| 4.0 | 72 | 28.8 | 14.4 | 7.2 | |||||
| Adjustment Range | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotation: 0° ~ 360° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Minimum Illumination | Colour: 0.05Lux (F2.0, AGC ON) 0Lux with IR | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| S/N | >52dB | ||||||||
| IR Range | Up to 30m (98ft) IR range | ||||||||
| wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120dB | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| 9:16 Corridor Mode | Supported | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 8 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Motion Detection | Up to 4 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | Support | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, SNMP | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | ||||||||
| Client | EZStation EZView EZLive | ||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||
| Interface | |||||||||
| Network | 10M/100M Base-TX Ethernet | ||||||||
| Certifications | |||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 5.5W | |||||||||
| Dimensions (Ø x H) | Φ126 x 94mm (Ø5.0” x 3.7”) | ||||||||
| Net Weight | 0.45kg (0.99lb) | ||||||||
| Material | Metal + Plastic | ||||||||
| Working Environment | -30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| surge protection | 2KV | ||||||||
| Ingress Protection | IP67 | ||||||||
