Uniview

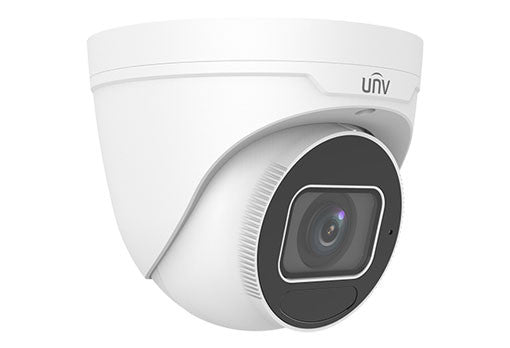

Uniview IPC3634SS-ADZK 4MP WDR IR Eyeball Network Motorized Vari-focal Dome Camera(LightHunter
4MP WDR IR Eyeball Network Motorized Vari-focal Dome Camera(LightHunter, 2.8-12mm,30m IR,PoE,Built-in MicPhone,SimPlified cable,H.265)
• High quality imaging with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 25fps; 4MP (2560*1440)@ 25fps; 3MP (2304*1296) @25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
IPC3634SB-ADZK-I0 | |||||||
Camera | |||||||
Sensor | 1/3", 4.0megapixel, progressive scan, CMOS | ||||||
Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
2.7 | 60.8 | 24.3 | 12.2 | 6.1 | |||
13.5 | 303.8 | 121.5 | 60.8 | 30.4 | |||
Angle of view (H) | 98.26°~ 31.35° | ||||||
Angle of View (V) | 54.76°~ 18.55° | ||||||
Angle of View7 (O) | 127.74°~36.99° | ||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Minimum Illumination | Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR on | ||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
S/N | >56dB | ||||||
IR Range | Up to 40m (131ft) IR range | ||||||
Wavelength | 850nm | ||||||
IR On/Off Control | Auto/Manual | ||||||
Defog | Digital Defog | ||||||
WDR | 120dB | ||||||
Video | |||||||
Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||
9:16 Corridor Mode | Supported | ||||||
OSD | Up to 8 OSDs | ||||||
Privacy Mask | Up to 4 areas | ||||||
ROI | Up to 8 areas | ||||||
Motion Detection | Up to 4 areas | ||||||
Image | |||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Digital Noise Reduction | 2D/3D DNR | ||||||
Smart IR | Support | ||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
Dewarping | N/A | ||||||
HLC | Supported | ||||||
BLC | Supported | ||||||
Audio | |||||||
Audio Compression | G.711 | ||||||
Suppression | Supported | ||||||
Sampling Rate | 8KHZ | ||||||
Storage | |||||||
Edge Storage | Micro SD, up to 256GB | ||||||
Network Storage | ANR, NAS(NFS) | ||||||
Network | |||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
Client | EZStation EZView EZLive | ||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
Interface | |||||||
Built-in Mic | Supported | ||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
Certifications | |||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||
General | |||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
Power consumption: Max 7.0W | |||||||
Dimensions (Ø x H) | Φ129 x 110mm (Ø5.1” x 4.3”) | ||||||
Net Weight | 0.69kg (1.52lb) | ||||||
Material | Metal | ||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Surge Protection | 6KV | ||||||
Ingress Protection | IP67 | ||||||
Vandal Resistant | IK10 | ||||||
Reset Button | Supported |
