Uniview

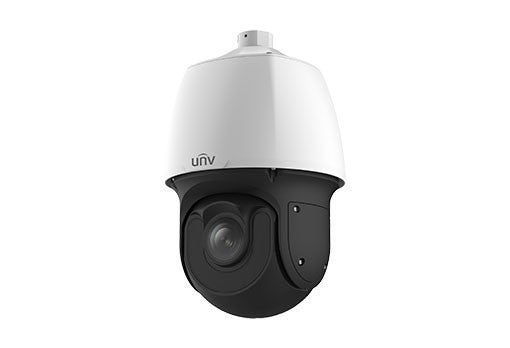

Uniview IPC6254SR-X33DUP 4MP 33X Network IP PTZ(Starlight, 5'', PoE, H.265
4MP 33X Network IP PTZ(Starlight, 5'', PoE, H.265, WDR)
Optics
Starlight illumination
33x optical zoom
Accurate and fast focusing
Smart IR, up to 200m(656ft) IR distance
EIS (Electronic Image Stabilization)
Compression
4 Megapixel image
Ultra 265, H.265, H.264, MJPEG
Triple streams
Customized OSD
Network
ONVIF Conformance
Structure
Innovative snow-removing functionality
Intelligent temperature control technology
6KV surge protection designed for network interface
More effective heat dissipation system
IP66
| IPC6254SR-X33DUP | |||||
| Camera | |||||
| Sensor | 1/2.8", 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 33 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.5 | 101.3(332.2ft) | 40.5(132.9ft) | 20.3(66.4ft) | 10.1(33.2ft) | |
| 148.5 | 3341.3(10962.1ft) | 1336.5(4384.8ft) | 668.3(2192.4ft) | 334.1(1096.2ft) | |
| Angle of View (H) | 52.4° ~ 2.2° | ||||
| Angle of View (V) | 40.5° ~ 1.7° | ||||
| Angle of View (O) | 64.4° ~ 2.6° | ||||
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.003 lux (F1.5,AGC ON) 0 lux with IR | ||||
| Iris | Auto/Manual; F1.5 ~ F4.0 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| IR range | Up to 200m(656ft) | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| EIS | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 240°/s | ||||
| Preset speed:300°/s | |||||
| Tilt Range | -15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 160°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Home Position | Supported | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| 1 Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | N/A | ||||
| General | |||||
| Power | AC 24V±25%, DC 24V±25%, PoE (PSE required) | ||||
| Power consumption: 54W Max | |||||
| Dimensions (Ø x H) | Ø227 x 359.4mm (Ø8.9” x 14.1”) | ||||
| Weight | 5.6Kg（12.3lb） | ||||
| Working Environment | -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing) | ||||
| Ingress Resistant | IP66 | ||||
| Reset Button | Supported | ||||
