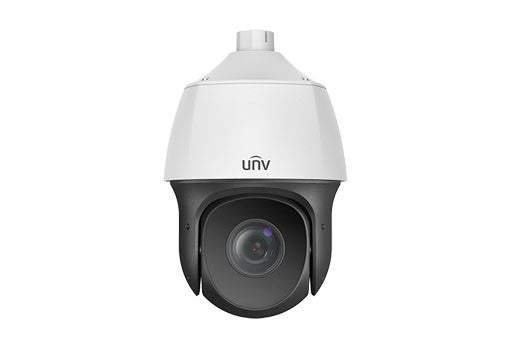

Uniview IPC6612SR-X33-VG 2MP 33x Lighthunter Network PTZ Dome Camera
Quantity:
• High quality image with 2MP,1/2.8’’ CMOS sensor
• 1920*1080@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 33X optical zoom allows for closer viewing of subjects
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• DC12V or PoE+(IEEE 802.3at) power supply
• Audio 1 in and 1 out, Alarm 2 in and 1 out
• Micro SD, up to 256GB
• Smart IR, up to 150m (492 ft) IR distance
• IP66 ingress protection
| IPC6612SR-X33-VG | |||||
| Camera | |||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto, 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens type | 4.5~ 148.5mm, AF automatic focusing and motorized zoom lens | ||||
| Optical Zoom | 33 | ||||
| Iris | Autol; F1.5 ~ F4.0 | ||||
| Angle of View (H) | 56.2° ~ 2.6° | ||||
| Angle of View (V) | 33.5° ~ 1.5° | ||||
| Angle of View (O) | 69.1° ~ 3.1° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.5 | 85.3(280.0ft) | 34.1(112.0ft) | 17.1(56.0ft) | 8.5(28.0ft) | |
| 148.5 | 1706.9 (5600.1ft) | 682.8(2240.0ft) | 341.4(1120.0ft) | 170.7(560.0ft) | |
| Illuminator | |||||
| IR Range | Up to 150m (492 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 2MP(1920*1080),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| H.264 Type | Baseline Profile/Main Profile/High Profile | ||||
| H.265 Type | Main Profile | ||||
| U-code | Support | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | 24 areas, up to 4 blacks in the same picture | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm; | ||||
| Auto-tracking | Support later | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZLive Ezview | ||||
| Web Browser | Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||
| Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 2°/s ~ 75°/s | ||||
| Preset speed: 180°/s | |||||
| Tilt Range | –15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 2° ~ 75°/s | ||||
| Preset speed: 80°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Patrol Stay Time | 15s~1800s | ||||
| Preset Image Freeze | Support | ||||
| Home Position | Support | ||||
| Interface | |||||
| Audio I/O | 1/1 | ||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Built-in Mic | N/A | ||||
| Built-in Speaker | N/A | ||||
| WIFI | N/A | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | N/A | ||||
| Certification | |||||
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 | ||||
| Safety | IEC 62368-1 EN 62368-1 UL 60950-1 | ||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | ||||
| Protection | Ingression protection: IP66 (IEC 60529-2013) | ||||
| General | |||||
| Power | DC12V±10% , PoE+ (IEEE802.3 at) | ||||
| Power consumption: Max 25W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Ø220 x 369mm (Ø8.7” x 14.5”) | ||||
| Weight | 3.4kg(7.48lb) | ||||
| Working Environment | -40℃~65℃(-40°F ~ 149°F)，≤95%RH | ||||
| Storage Environment | -40℃~70℃(-40°F ~ 158°F)，≤95%RH | ||||
| Surge protection | 6KV | ||||
| Vandal Resistant | N/A | ||||
| Ingress Protection | IP66 | ||||
| Reset button | Support | ||||
