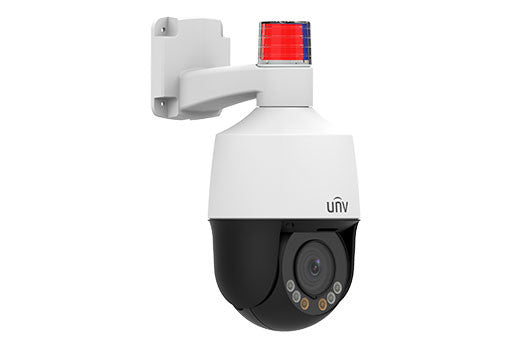

Uniview IPC675LFW-AX4DUPKC-VG 5MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio (UNI-IPC675LFW-AX4DUPKC-VG)
Uniview IPC675LFW-AX4DUPKC-VG 5MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio

Uniview

Uniview IPC675LFW-AX4DUPKC-VG 5MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio

$659.00
Discontinued
SKU: IPC675LFW-AX4DUPKC-VG

Contact

5MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)

Optics

* LightHunter illumination

* Day/night functionality

* Up to 50 m (164 ft) IR and 10m (33 ft) warm light distance

* Up to 120 dB Optical WDR(Wide Dynamic Range)

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265,H.265, H.264, MJPEG

* Built-in microphone & speaker

* Alarm Light

* Triple streams

* ROI (Region of Interest)

Network

* ONVIF Conformance

Structure

* Support PoE power supply

* Wide temperature range: -20°C ~ 60°C (-4°F to 140°F)

* Wide voltage range of ±25%

* IP66

IPC672LR-AX4DUPKC
Camera
Sensor 1/2.8" progressive scan, 2.0 megapixel, CMOS
Lens 2.8~12mm，AF automatic focusing and motorized zoom lens
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 43.4 17.4 8.7 4.3
12mm 186.2 74.5 37.2 18.6
Angle of View (H) 32.5°~95.7°
Angle of View (V) 18.4°~52.2°
Angle of View (O) 36.9°~100.8°
Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum Illumination Colour:0.001 lux (F1.6,AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52 dB
IR Range UP to 50m (164ft)
Wavelength 850nm
IR On/Off Control Auto/Manual
Warm Light Range UP to 10m (33ft)
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream:1080P (1920*1080):Max. 30 fps; 720P (1280×720):Max. 30 fps;
Sub Stream: 720P (1280×720):Max. 30 fps;
Third Stream: CIF (352*288): Max. 30 fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping Support
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
Compatible Integration ONVIF(Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Pan & Tilt
Pan Range 345°
Pan Speed 0.1°/s ~ 50°/s
Preset speed: 50°/s
Tilt Range 90°
Tilt Speed 0.1° ~ 40°/s
Preset speed: 40°/s
Number of Presets 256
Patrol Preset patrol, Route patrol
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Built-in Speaker Supported
Alarm Light Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE802.3 at)
Power consumption: Max 16 W
Dimensions (Ø x H) Φ133mm*269.4mm (Φ5.2”x 10.6”)
Net Weight 0.87 kg (1.92lb)
Gross Weight 1.13 kg (2.49lb)
Material Metal + Plastic
Working Environment -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection 4KV
Ingress Protection IP66
Reset Button Supported
