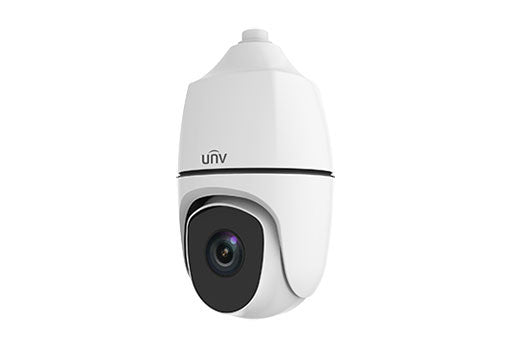

Uniview IPC6854ER-X40G-VF 4MP 40X Lighthunter IR Network PTZ Dome Camera
• High quality image with 4MP,1/1.8’’ CMOS sensor
• 2688*1520@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Five streams
• 40X Optical Zoom
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 250m (820ft) IR distance
• Support SFP optical interface, support serial connection of optical and electrical interface
• AC 24V ±25%, DC 24V±25%
• Alarm 7 in and 2 out, Audio 1 in and 1 out
| IPC6854ER-X40G-VF | ||||||
| Camera | ||||||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | |||||
| Minimum Illumination | Colour: 0.0005Lux (F1.3, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| WDR | 120dB | |||||
| S/N | >56dB | |||||
| Lens | ||||||
| Lens type | 5.7 ~ 228mm, AF automatic focusing and motorized zoom lens | |||||
| Digital Zoom | 16 | |||||
| Optical Zoom | 40 | |||||
| Iris | Auto; F1.3 ~ F4.6 | |||||
| Angle of View (H) | 59.5° ~ 2.2° | |||||
| Angle of View (V) | 35.6° ~ 1.2° | |||||
| Angle of View (O) | 70.2° ~ 2.6° | |||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 5.7 | 107.2(351.8ft) | 42.9(140.7ft) | 21.4(70.4ft) | 10.7(35.2ft) | ||
| 228 | 3330.6(10927.2ft) | 1332.2(4370.9ft) | 666.1(2185.4ft) | 333.1(1092.7ft) | ||
| Illuminator | ||||||
| IR Range | Up to 250m (820 ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps Fourth Stream: D1 (720*576), Max 30fps Fifth Stream: D1 (720*576), Max 30fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| H.264 Type | Baseline Profile/Main Profile/High Profile | |||||
| H.265 Type | Main Profile | |||||
| U-code | Support | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Five streams | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 24 blacks (Up to 4 blacks in the same picture) | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| EIS | N/A | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Optical Defog & Digital Defog | |||||
| Events | ||||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U,G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way audio | Support | |||||
| Suppression | Support | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR,NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | EZStation Ezview EZLive | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Pan & Tilt | ||||||
| Pan Range | 360° (endless) | |||||
| Pan Speed | 0.1°/s ~ 180°/s | |||||
| Preset speed: 300°/s | ||||||
| Tilt Range | -15° ~ 90° (auto reverse) | |||||
| Tilt Speed | 0.1° ~ 180° | |||||
| Preset speed: 240°/s | ||||||
| Number of Presets | 1024 | |||||
| Patrol | Preset patrol, route patrol, recorded patrol | |||||
| Patrol Stay Time | 15s~1800s | |||||
| Preset Image Freeze | Support | |||||
| Home Position | Support | |||||
| Interface | ||||||
| Audio I/O | 1/1 | |||||
| Alarm I/O | 7/2 | |||||
| Serial Port | 1 RS485 | |||||
| Built-in Mic | N/A | |||||
| Built-in Speaker | N/A | |||||
| WIFI | N/A | |||||
| Network | 1*100M/1000M Base-FX SFP + 1*10M/100M Base-TX Ethernet | |||||
| Video output | 1 BNC | |||||
| Certification | ||||||
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 | |||||
| Safety | IEC 62368-1 EN 62368-1 UL 60950-1 | |||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | |||||
| Protection | Ingression protection: IP66 (IEC 60529-2013) | |||||
| General | ||||||
| Power | AC 24V ±25%, DC 24V±25% | |||||
| Power consumption: Max 61W | ||||||
| Power Interface | Wires with cold-pressed terminal | |||||
| Dimensions (Ø x H) | Φ270 x 497mm (Φ10.6” x 19.6”) | |||||
| Weight | 9.5kg(20.9lb) | |||||
| Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 6KV | |||||
| Vandal Resistant | N/A | |||||
| Ingress Protection | IP66 | |||||
| Reset Button | Support | |||||
