Uniview

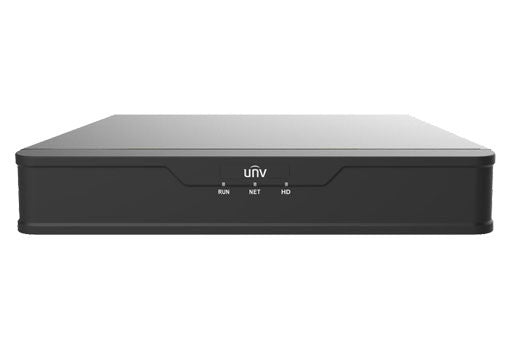

Uniview NVR301-08X 8-ch 1-SATA Ultra 265/H.265/H.264 NVR
Storage:No Storage
Choose options
Storage:No Storage
Storage:No Storage
- Support Ultra 265/H.265/H.264 video formats
- 4/8/16-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDD up to 6 TB
- Support cloud upgrade
| Model | NVR301-04X | NVR301-08X | NVR301-16X |
| Video/Audio Input | |||
| IP Video Input | 4-ch | 8-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | ||
| Network | |||
| Incoming Bandwidth | 64Mbps | ||
| Outgoing Bandwidth | 64Mbps | ||
| Remote Users | 128 | ||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||
| Video/Audio Output | |||
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Synchronous Playback | 4-ch | 8-ch | 16-ch |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
| Decoding | |||
| Decoding format | Ultra 265/H.265/H.264 | ||
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Capability | 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30, 16 x 720p@30 | ||
| Hard Disk | |||
| SATA | 1 SATA interface | ||
| Capacity | up to 6TB for each disk | ||
| External Interface | |||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||
| USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 | ||
| General | |||
| Power Supply | 12V DC Power Consumption: ≤8 W (without HDD) | ||
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | ||
| Dimensions (W×D×H) | 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ") | ||
| Weight (without HDD) | 1.3kg (2.87 lb) | ||
