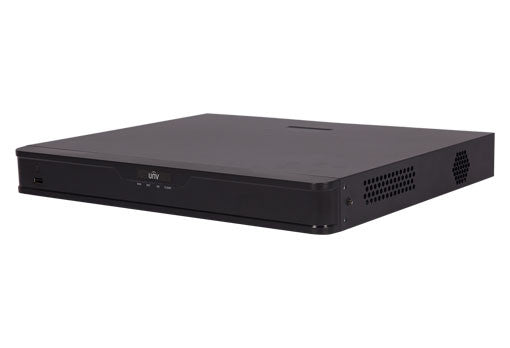

Uniview NVR302-16Q 2 Hard Disks 16-Channel 5MP TVI CVI AHD H.265 Hybrid Network Video Recorder
Storage:No Storage
2 Hard Disks 16-Channel 5MP TVI CVI AHD H.265 Hybrid Network Video Recorder
Support Ultra265/H.265/H.264 video formats
16-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
HDMI and VGA simultaneous output
Up to 8 Megapixels resolution recording
Accurate retrieval, instant playback
2 SATA HDDs, up to 6TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
| Model | NVR302-16S |
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 96Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60 |
| Audio Output | 1-ch, RCA |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Decoding | |
| Decoding format | Ultra265/H.265/H.264 |
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4K@30, 1 x 6MP@30,1 x 5MP@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30,16 x D1 |
| Hard Disk | |
| SATA | 2 SATA interface |
| Capacity | up to 6TB for each disk |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0, Front panel: 1 x USB2.0 |
| General | |
| Power Supply | 12V DC Power Consumption: ≤ 7 W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 380mm × 315mm ×53mm (15.0" × 12.4" ×2.1") |
| Weight (without HDD) | ≤ 1.6Kg (3.53lb) |
