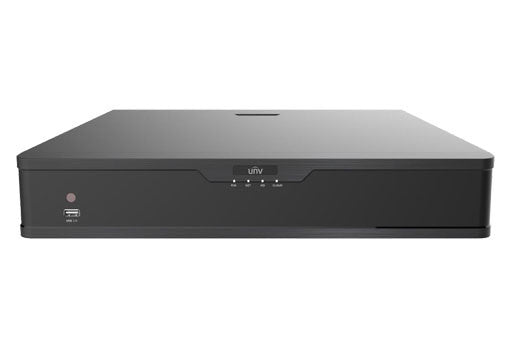

Uniview NVR304-16S-P16 4K Network Video Recorder
Storage:No Storage
Support Ultra265/H.265/H.264 video formats
16/32-channel input
Plug & Play with 16 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support HDMI and VGA simultaneous output
Up to 8 Megapixels resolution recording
4 SATA HDDs, up to 10TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
| Model | NVR304-16S-P16 | NVR304-32S-P16 | |
| Video/Audio Input | |||
| IP Video Input | 16-ch | 32-ch | |
| Two-way Audio Input | 1-ch, RCA | ||
| Network | |||
| Incoming Bandwidth | 160Mbps | ||
| Outgoing Bandwidth | 64Mbps | ||
| Remote Users | 128 | ||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP | ||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | ||
| Video/Audio Output | |||
| HDMI/VGA Output | HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 | ||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Audio Compression | G.711A, G.711U | ||
| Synchronous Playback | 16-ch | 32-ch | |
| Liveview display | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/36 | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | |
| Decoding | |||
| Decoding format | Ultra 265/H.265/H.264 | ||
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30, 16 x 720P@30 | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1@30 | |
| Hard Disk | |||
| SATA | 4 SATA interfaces | ||
| Capacity | Up to 10TB for each disk | ||
| Smart | |||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking | ||
| VCA Search | Behavior Search | ||
| People counting | People Flow Counting, Crowd Density Monitoring | ||
| Smart Intrusion Prevention (SIP) by Camera | 8-ch | ||
| General Alarm | |||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | ||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||
| External Interface | |||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | ||
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | ||
| RS232 | NA | ||
| RS485 | 1 | ||
| Alarm In | 16-ch | ||
| Alarm Out | 4-ch | ||
| PoE | |||
| Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface | ||
| Max Power | Max 30W for single port Max 150W in total | ||
| Supported Standard | IEEE 802.3af/at | ||
| General | |||
| Power Supply | 100 ~ 240 V AC Power Consumption: ≤15W(without HDD) | ||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||
| Dimensions (W×D×H) | 400mm ×362mm × 74mm (15.7" × 14.2" ×2.9") | ||
| Weight (without HDD) | ≤5kg (11.02lb) | ||
| Certification | |||
| Certification | CE, FCC, UL, RoHS, WEEE | ||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||
| FCC | Part15 Subpart B, ANSI C63.4 | ||
