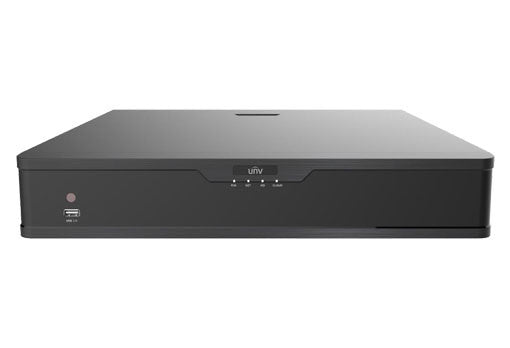

Uniview NVR304-32S-P16 NVR304-32S-P16 4K Network Video Recorder
Storage:No Storage
Quantity:
NVR304-32S-P16 4K Network Video Recorder
Support Ultra265/H.265/H.264 video formats
16/32-channel input
Plug & Play with 16 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support HDMI and VGA simultaneous output
Up to 8 Megapixels resolution recording
4 SATA HDDs, up to 10TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
| Model | NVR304-16S-P16 | NVR304-32S-P16 |
| Video/Audio Input | ||
| IP Video Input | 16-ch | 32-ch |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 160Mbps | |
| Outgoing Bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16-ch | 32-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 |
| Decoding | ||
| Decoding format | Ultra265/H.265/H.264 | |
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30, 16 x 720P@30 | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1@30 |
| Hard Disk | ||
| SATA | 4 SATA interfaces | |
| Capacity | Up to 10TB for each disk | |
| External Interface | ||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | |
| Serial Interface | 1 x RS485 | |
| Alarm In | 16-ch | |
| Alarm Out | 4-ch | |
| PoE | ||
| Interface | 16 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
| Max Power | Max 30W for single port Max 240W in total | |
| Supported Standard | IEEE 802.3af/at | |
| General | ||
| Power Supply | 100 ~ 240 V AC Power Consumption: ≤15W(without HDD) | |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 400mm ×362mm × 74mm (15.7" × 14.2" ×2.9") | |
| Weight (without HDD) | ≤5kg (5.29lb) | |
