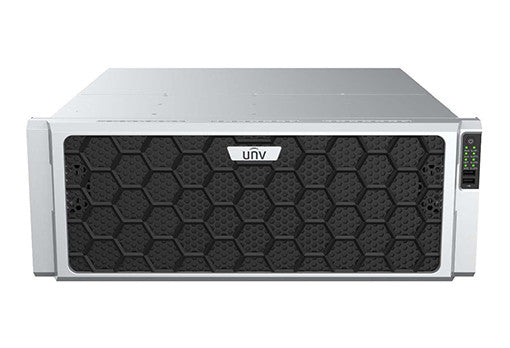

Uniview NVR824-128R - 128 Channel 24 HDDs RAID NVR
Storage:No Storage
Support Ultra 265/H.265/H.264 video formats
128/256-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
HDMI1, HDMI2 and VGA independent outputs provided
Up to 12 Megapixels resolution recording
Redundant power supply optional
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
24 SATA HDDs, up to 10TB for each HDD
Support 2 miniSAS Interfaces
Support 12V power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare
| Model | NVR824-128R | NVR824-256R |
| Video/Audio Input | ||
| IP Video Input | 128-ch | 256-ch |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 768Mbps | |
| Outgoing Bandwidth | 768Mbps | |
| Remote Users | 128 | 256 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16-ch | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |
| Decoding | ||
| Decoding format | Ultra 265, H.265, H.264 | |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1 | |
| Hard Disk | ||
| SATA | 24 SATA interfaces | |
| Capacity | up to 10TB for each HDD | |
| Extension board | 4 | |
| miniSAS* | 2 miniSAS ports | |
| eSATA | 1 | |
| Disk Array | ||
| Array Type | RAID 0/1/5/6/10/50/60 | |
| External Interface | ||
| Network Interface | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface | |
| Serial Interface | 1 x RS232, 1 x RS485 | |
| USB Interface | Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0 | |
| Alarm In | 24-ch | |
| Alarm Out | 8-ch | |
| Power Output | 12V | |
| General | ||
| Power Supply | 100 ~ 240V AC Power Consumption: ≤ 70 W (without HDD) | |
| Working Environment | -10°C ~ + 50°C (+14°F ~ +122°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions | 533mm ×484.6mm × 175.5mm (21.0 "×19.1" ×6.9") | |
| Weight (without HDD) | ≤ 12.5 Kg (27.56 lb) | |
