Uniview

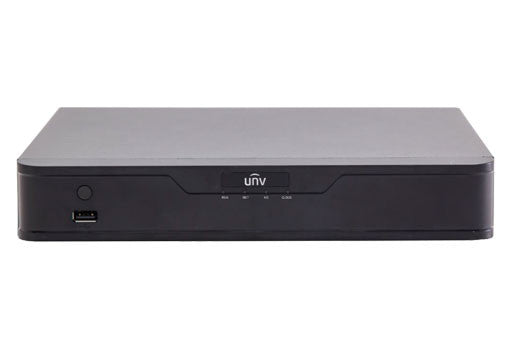

Uniview XVR302-16Q-IF 2 Hard Disks 16-Channel 5MP TVI CVI AHD H.265 Hybrid AI Network Video Recorder
Storage:No Storage
2 Hard Disks 16-Channel 5MP TVI CVI AHD H.265 Hybrid AI Network Video Recorder, Audio over Coax, FR
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
Support audio over coaxial cable
8/16-channel BNC input
Up to 4K resolution for recording
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
Long transmission distance over coaxial cable
| Model | XVR302-08Q | XVR302-16Q |
| Video/Audio Input | ||
| Analog Video Input | 8-ch, BNC | 16-ch, BNC |
| IP Video Input | 4-ch(only IP up to 12ch), each channel up to 4K | 8-ch(only IP up to 24ch), each channel up to 4K |
| Supported Analog Camera Types |
Support AHD input: 8MP@15fps(channel1-channel2) 5MP@20fps 4MP@30fps 3MP@30fps(channel1-channel2) 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps(channel1-channel2) 5MP@20fps 4MP@30fps 3MP@20fps(channel1-channel2) 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps(channel1-channel2) 4MP@30fps 1080P@30fps 720P@60fps Support CVBS input |
Support AHD input: 8MP@15fps(channel1-channel4) 5MP@20fps 4MP@30fps 3MP@30fps(channel1-channel4) 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps(channel1-channel4) 5MP@20fps 4MP@30fps 3MP@20fps(channel1-channel4) 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps(channel1-channel4) 4MP@30fps 1080P@30fps 720P@60fps Support CVBS input |
| Audio Input | 1-ch, RCA | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 56Mbps | 72Mbps |
| Outgoing Bandwidth | 64Mbps | 80Mbps |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| CVBS Output | 1-ch, BNC | |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 8-ch | 16-ch |
| Encoding | ||
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF | |
| Recording Frame Rate |
Main stream: 8MP Lite@8fps(channel1-channel2) 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1-channel2) 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max) |
Main stream: 8MP Lite@8fps(channel1-channel4) 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1-channel4) 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max) |
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | up to 6TB for each HDD | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0, Front panel: 1xUSB2.0 | Rear panel: 1 x USB3.0, Front panel: 1xUSB2.0 |
| Serial Interface | 1 x RS485 | |
| General | ||
| Power Supply | 12V DC Power Consumption: ≤ 8 W( without HDD ) | 12V DC Power Consumption: ≤ 12 W( without HDD ) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions(W×D×H) | 380mm ×315mm× 53mm (15" × 12.4"×2.1") | |
| Weight ( without HDD ) | ≤1.9 Kg ( 4.19lb ) | |
