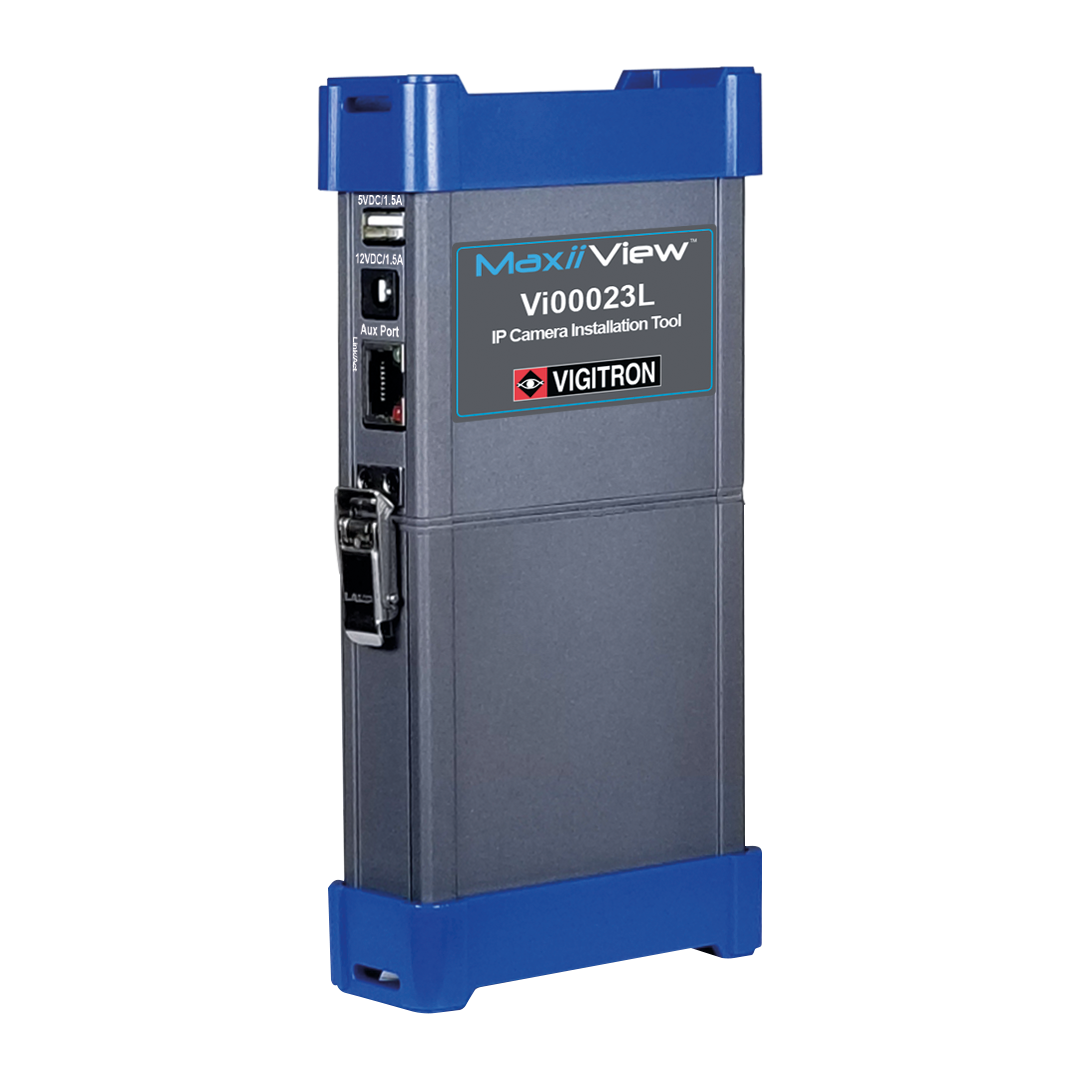

Vigitron Vi00023 MaxiiView™ WiFi Camera set up tool W/PoE meter & built in removable PoE power supply

• Simplifies and speeds up installation and Camera positioning
• Compact and lightweight design makes it possible to operate it hands-free
• Complies with IEEE 802.3af/at POE standards, and can deliver up to 36W of POE
• Monitors real-time PoE voltage and power on OLED display
• Enables focusing and adjusting the camera view through wired and wireless connections to the camera for viewing images on cell phones, tablets, or laptops
• A 5V USB port enables charging smartphones/tablets on the site.
• Built-in rechargeable battery provides PoE power to connected devices without the need for external power sources
• Compact design, light, and easy to use
• Verifies proper camera connection and PoE
• Includes a built-in 3-port switch
• Reduces installation time and cost
• Patented design.

Vigitron's patent-pending Vi00023 wireless camera setup tool offers a fast and reliable method for focusing and adjusting the view of IP cameras in the field. The connected IP camera image is transmitted through both WiFi and wired connection allowing for a quick in-field view of images on cell phones, tablets, or laptops. It also displays PoE voltage and power consumed by the camera. The Vi00023 is very compact and light and can easily fit in a pocket. The carrying strap makes it easy to operate hands-free.

PoE Source:
The built-in Midspan is compliant with IEEE 802.3af/at and provides up to 36W PoE power.

WiFi:
The Vi00023’s WiFi provides the ability to view IP camera images on smartphones, tablets, or computers operating with Android, iOS, or WindowsTM platforms by entering the connected device's user name and password. A blue LED indicates that the WiFi is active. The Vi00023 can operate at distances up to 60 feet (18m).

Aux Port:
Provides an easy way to connect a wired IP device to the WiFi network for testing purposes.

USB Port:
A 5V @1.5A USB port is provided for charging smartphones and Tablets on site.

DC Power Output:
The DC power output provides a 12VDC @ 1.5A for powering non-PoE devices.

Removable Battery:
The Vi00023 has a rechargeable and removable battery that provides power to the unit and the connected camera. It is 43.2Wh and provides up to 80 minutes of use at 20W or 8 hours at 5W meeting the most depending on network testing and positioning requirements. A Battery Status Icon on the OLED display shows the remaining charge level. The removable battery can be charged either connected to Vi00023 or stand-alone. The Vi00023 includes a fast battery charger and an extra battery pack that makes it possible to use it for a longer time without running out of power.

The Vi00023’s compact and lightweight construction makes it easy to carry. It is an ideal tool that saves time and money in the installation and debugging of IP cameras.
