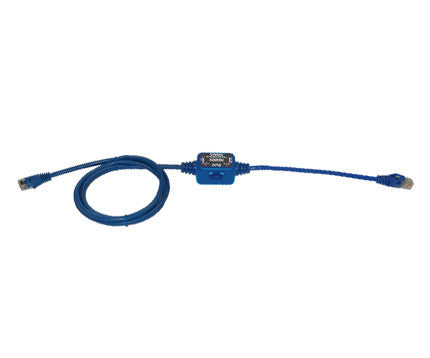

Vigitron Vi0019 ViewMate™ 60W IP Camera Setup Tool

Vigitron’s ViewMate Vi0019 is a compact but powerful tool for installing and troubleshooting POE enabled IP cameras. When connected, ViewMate passes the POE power from the “Network” port to the remote POE device, and the “Laptop” port provides direct network connection from the remote POE camera to a local laptop for focusing and setting up POE enabled IP cameras.

ViewMate’s integrated 2 LEDs provides a clear indication of POE status. It is compatible with IEEE 802.af, IEEE 802.at and most non-standards POE systems up to 60W for 10/100 BASE-T environments.

ViewMate’s innovative design offers a small and rugged packaging with a built-in 3-foot Cat 5 cable. It is an ideal diagnostic tool for all installers working with both CCTV and IT POE systems.

Features

• Provides an simple way to setup and focus POE powered IP cameras
• Maintains POE power to the IP camera while making a local Ethernet connection to a laptop to view the camera image
• Indicates PoE presence at the camera
• Does not require external power source
• 10/100BASE-T compliant with integrated network crossover
• Compatible with IEEE 802.af , IEEE 802.at and most non-standard solutions up to 60W
• Low cost and easy to use
• Speeds up the IP camera installation
• Limited lifetime warranty
