Vigitron

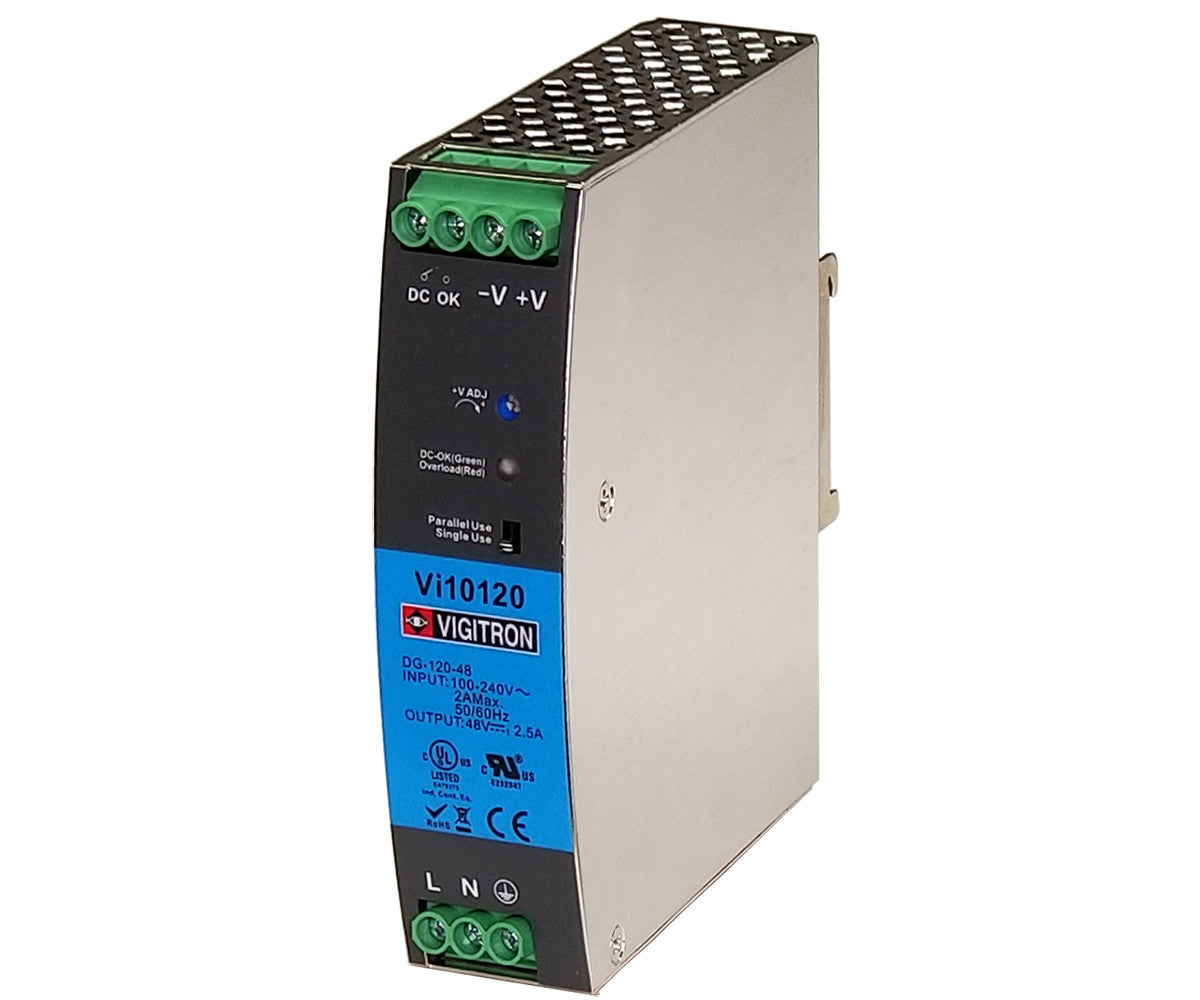

Vigitron Vi10120 56VDC, 120W Din-Rail, Hardened Power Supply
Quantity:
Vigitron’s MaxiiPower™ Vi10120 Din Rail Power Supply is designed for hardened applications. A wide operating temperature range of -25ºC to 70ºC assures reliable operation for many mission critical operations. It provides many features designed for its own protection and connection to the device its powering. The Vi10120’s combined a 150% peak load up to 180W, over current protection and current limiting will protect itself and powered devices. An alarm relay provides notification in the event of failures. Outputs of multiple Vi10120s can be connected together to increase the total power or serve as a back up supply. Multiple DIN Rail mountings simplifies installation.
The Vigitron Vi10120 can be configured for a wide variety of applications to provide both additive and back up power.
Features
- High efficiency up to 92% with universal AC input range (85~264Vac)
- 120W output at 48~56VDC with 150% (180W) peak load capacity
- Hardened with wide operating temp -25°C~70°C
- Support 1+1 or N+1 redundant system
- Built-in current sharing function
- Built in DC OK relay contact
- Output protections: OVP/OLP/SCP/OTP
- Easy Fuse Tripping due to High Overload Current
- 100% full load burn-in test
- Free air convection
