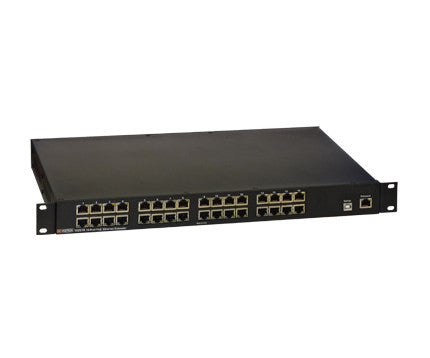

Vigitron Vi2216A 16-Port MaxiiPower 60W Managed PoE++ Midspan

The MaxiiPower™ Model Vi2208A and Vi2216A are 8 and 16 port high power PoE midspans. They are compatible with 10/100/1000BaseT Ethernet networks.

They meet IEEE 802.3af and IEEE 802.3at standards and deliver up to 37W per port simultaneously on all ports without requiring power management. In addition, they can provide up to 74W on each ports of 1-4. These Midspans are fully managable by an easy to use GUI that can be accessed via direct connection to the USB port or remotely over network connections.

These midspans are equipped with LEDs to provide power status. No IP setting or configurations are required, and they are completely transparent to the Ethernet network and higher layer protocols.

The MaxiiPower™ midspans are 1U high and can be easily installed in 19” racks. They are ideal for a wide range of CCTV or IT applications that require high power such as IP cameras, wireless access points or VoIP to be connected to a central LAN switching fabric with ease.

Features

• 8 or 16 port of IEEE 802.3.af/at compliant POE for 10/100/1000 Base-T networks
• Deliver up to 37W per port simultaneously on all ports, no Power Management required
• Ports 1-4 can provide 74W each
• Per port delayed PoE power up programmable for reducing start-up power surges
• Automatically senses PD power class and single or dual PD devices
• LED Indicators provide power on each port
• Provide high data rate and high power for long distance, ideal for Mega-pixel cameras
• 19”, 1U rack or wall mountable
• Fully transparent to Ethernet networks and higher layer protocols
• Fully mananagable with Windows GUI accessibale through local USB port or network connection with default plug and play option
• No IP address programming or other networking setup required
• Limited lifetime warranty
