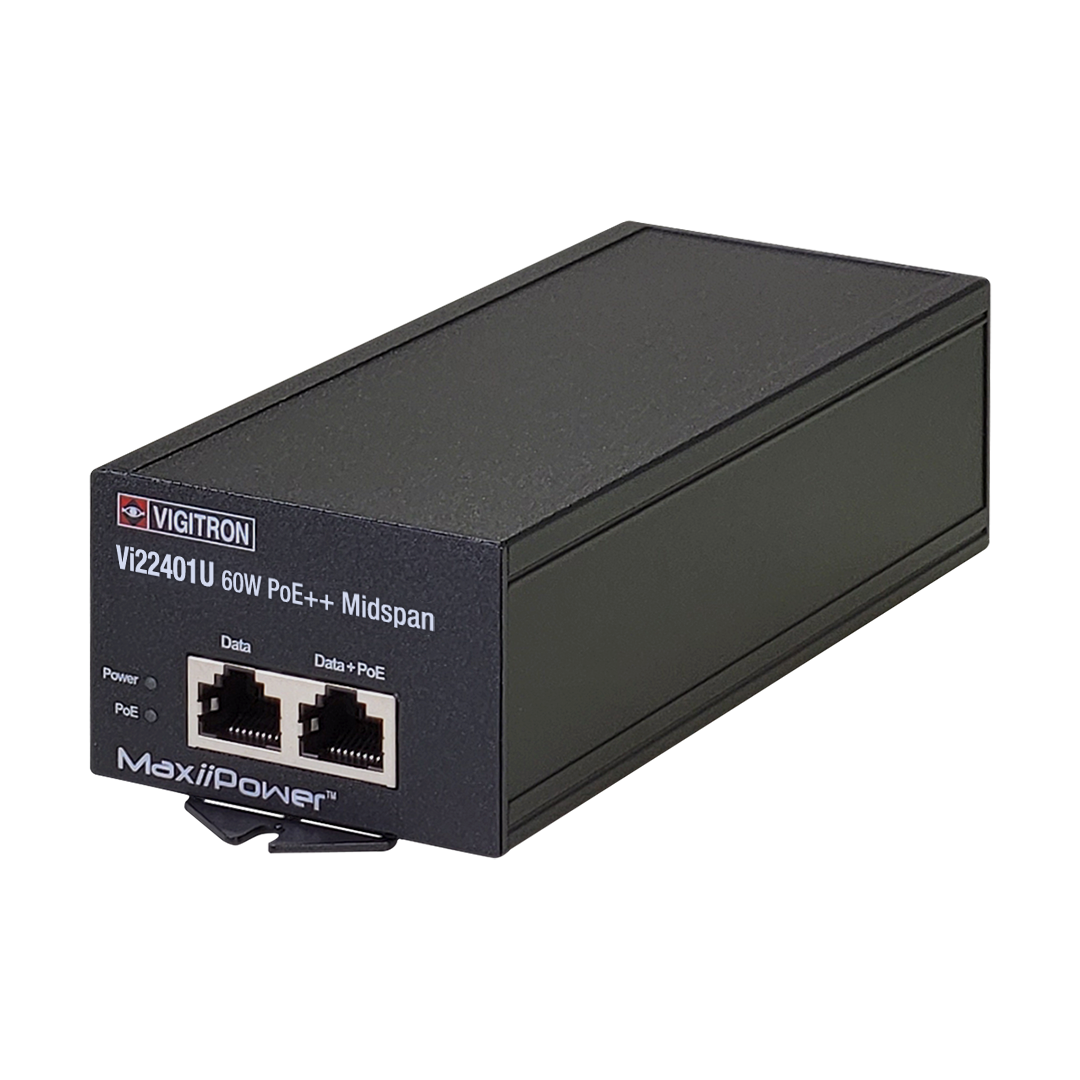

Vigitron Vi22401U 1-Port MaxiiPower™ af/at/bt 60W PoE Midspan w/ built in power supply

• Single port IEEE 802.3.af/at/bt PoE class 0-6
• Compliant to 10/100/1000 Base-T devices
• Built-in 65W universal power supply
• Automatically senses single or dual PD devices
• Complies with IEEE 802.3 safety standards for automatic detection and over-current protection
• Built-in PoE surge protection
• Provides high data rate and power for Megapixel IP camera applications
• Tested to RFC 2544 packet transmission standards
• Compact design

Vigitron’s MaxiiPower™ Vi22401U is a high power single port Midspan compliant to IEEE 802.3af, at, bt classes 0-6 up to 60W. It is compatible with devices using UPoE. It is a cost-effective solution for powering a wide range of IP cameras that offers all standard PoE safety features including detection, connection/disconnection, and fault protection. With a transmission bandwidth of up to 1Gbps, its application has virtually no bandwidth limitations and interfaces with the highest megapixel cameras.

The Vi22401U includes a 65W built-in power supply. The size and operating temperature range of -20°C to 50°C make it the perfect solution for outdoor applications using environment enclosures. It provides a wide operating temperature range that meets the requirements for outdoor operation in weatherproof enclosures.

The Vi22401U complies with all network transmission standards and is an ideal solution for powering any PoE-powered devices that requires high power PoE devices requiring up to 60W.
