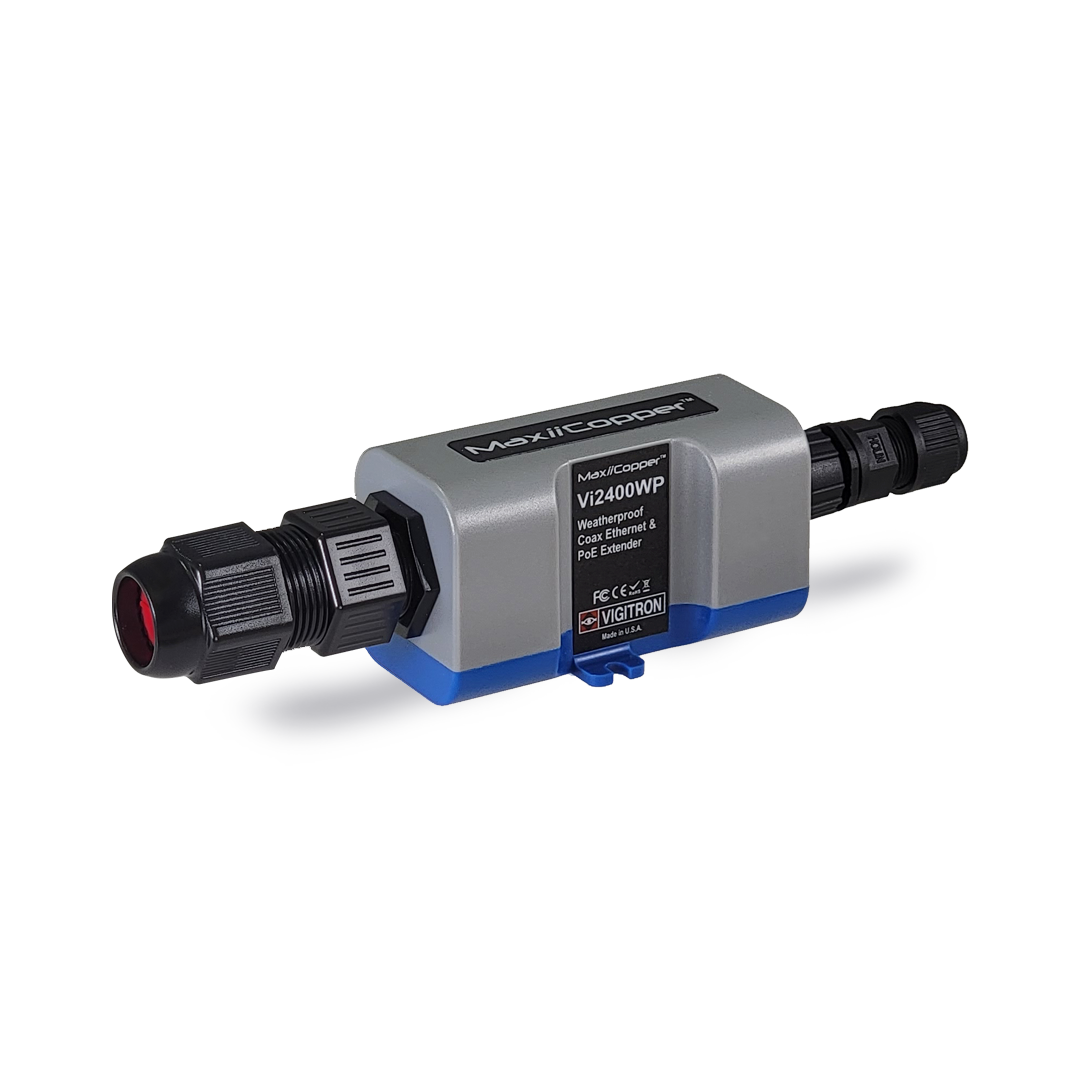

Vigitron Vi2400WP 1-Port MaxiiCopper™ Ethernet Extender over Coax, af/at 37W PoE, Hardened, IP67 Weatherproof

• Transmits Ethernet and PoE up to 5,000 feet (1,515 m) over Coax cable
• IP67 weatherproof construction for mounting on buildings and poles
• Certified for IEC600068-2-52 for salt ladened environments
• Simply installation and lowers costs by eliminating the need for extra enclosures\
• Saves equipment costs and reduces installation time
• Pass-Through PoE (PTP™) compatible with 802.3af and 802.3at PoE
• MegaPixel Certified (MPC™) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras and multiple IP cameras systems requiring Jumbo Frames
• Symmetric Bandwidth(SBW™) provides consistent upload and download with Virtual Zero Packet Loss (VZPL™) over a total specified distance
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
• Type tested for -40°C to +75°C temperature range
• Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS
• 6KV surge protection
• Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS

Overview

Vigitron’s MaxiiCopper™ Vi2400WP Ethernet over Coax Network extender brings new performance standards to the growing need for high-speed transmission of full bandwidth Ethernet and PoE over extended distances of coaxial cables. The IP67-rated housing protects performance under harsh weather conditions and up to 3 feet (1m) of water. Developed as a complete product the Vi2400W simplifies installation and lowers cost by eliminating the need for extra cost housings. Its unique Symmetric Bandwidth (SBW™) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL™). Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no information loss.

Pass-Through PoE (PTP™) eliminates the need for additional remote site power while allowing a single PoE source, such as a PoE network switch, to provide power to both transceivers and the camera. This feature eliminates the need for local and remote site power supplies. Type tested under NEMA-TS2 environmental standards for extended temperature operations between -40C° to +75C°, the Vi2400WP is the perfect solution for extended-distance data and power transmission for warehouses, parking lots, campuses, casinos, and many more. MaxiiCopper’s™ Vi2400WP is low power and easily fits inside most cameras housing and junction boxes. Best of all, the Vi2400WP is MegaPixel Certified (MPC™), the type tested to network packet performance standards, and major manufacturer compatibility tested to assure you error-free and reliable operations.

Installation cost savings, proven performance, and major camera brand compatibility all go into making Vigitron’s MaxiiCopper™ Vi2400WP your best choice for extended distance data and power transmission outdoors.
