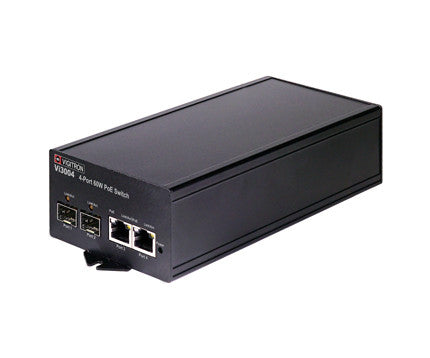

Vigitron Vi3004 4-Port MaxiiNet L2 PoE Switch, 2 fiber & 2 100/1G

Vigitron’s MaxiiNet™ Vi3004 provides solutions for upgrading existing analog system to fiber, converting or adding Ethernet UTP cabling to existing fiber runs, or both. With full layer 2 network switching, up to 60 watts PoE and 1G bandwidth, the Vi3004 is a cost effective and reliable solution for any security application.

The Vi3004 is a 4 port layer 2 network switch and fiber to copper media convertor design for multiple applications and providing significant installation cost reduction. Powered by either 120 VAC or 240 VAC, the Vi3004 can be used in most existing CCTV applications without the need of replacing existing power supplies especially for parking lot and perimeter applications. It offers unique ability to install or upgrade any combination of single transmission lines with fiber, copper, or both and connect individual drops of fiber, copper or both along with providing PoE up to 60 watts.

The Vi3004 is MegaPixel Certified (MPC™), type tested to network packet performance standards, and major manufacturer compatibility tested to assure you error free, quality operations with the highest megapixel cameras. Fixed managed L2 functions include 802.1p Qos, support of 2k MAC addressing, learning, aging, and a non-blocking switch fabric making the Vi3004 the perfect solution for connecting multiple network switches over fiber, copper, or both. Installation cost savings, proven performance, and major camera manufacturer compatibility all go into making Vigitron’s MaxiiNet™ Vi3004 an ideal solution for standard distance data and power transmission.

Features

• 4-port layer 2 network switch media converter
• 2-port fiber to 2-port Ethernet copper media converter
• Mix single cable runs from fiber to copper wiring as single transmission cable runs
• Designed for easy conversion of analog to IP
• Use existing 120VAC or 240VAC to provide up to 60W PoE for powering PTZ domes with heaters and blowers
• Single channel PoE up to 60W or 2 channels of PoE up to 30W each
• Provides MSA compliant SFP fiber output port for integration to existing fiber infrastructures and extreme long distance up to 80Km
• Jumbo Frame support Megapixel packet transmission to 10K bytes
• Intelligent power sensing automatically allocates port power based on the number of connected ports and individual camera power requirements
• Automatic PoE port priority allocation • Over current shutdown protection if allocated PoE budget is exceeded
• Certified (MPC™) high data rate for virtual loss free transmission of cameras
• Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
• Type tested for 0°C to +70°C operating temperature range
• Complies with major IEEE standards and RFC network protocols for UTP, TCP/IP, HTTP/HTTPS
