Vigitron Vi30105U 6-Port 1G 802.3bt 90W PoE Powered PoE Switch

$396.00
SKU: Vi30105U
Quantity:
Link to Manufacturer's Page

Contact
  • 6-port fixed Layer 2, 1G PoE powered PoE switch
  • Supports major high power non standard PoE powered devices
  • 100/1000Mbps network speeds, auto sensing
  • Can be powered from a remote 802.3bt PoE source and provide PoE power to 4 ports
  • Each port can power 802.3bt PoE loads up to 90W as well as most non-standard PoE up to 72W
  • SFP fiber port supports long distances up to 80Km
  • Automatic PoE port priority allocation
  • Over current shutdown protection if PoE budget exceeds
  • Certified Mega Pixel Camera (MPC™) for virtual loss free transmission of data
  • Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
  • Type tested for -40°C to +70°C operating temperature range *
  • Complies with major IEEE standards and RFC network protocols for UTP, TCP/IP, HTTP/HTTPS
  • Provides fixed Layer 2 network switch functionality

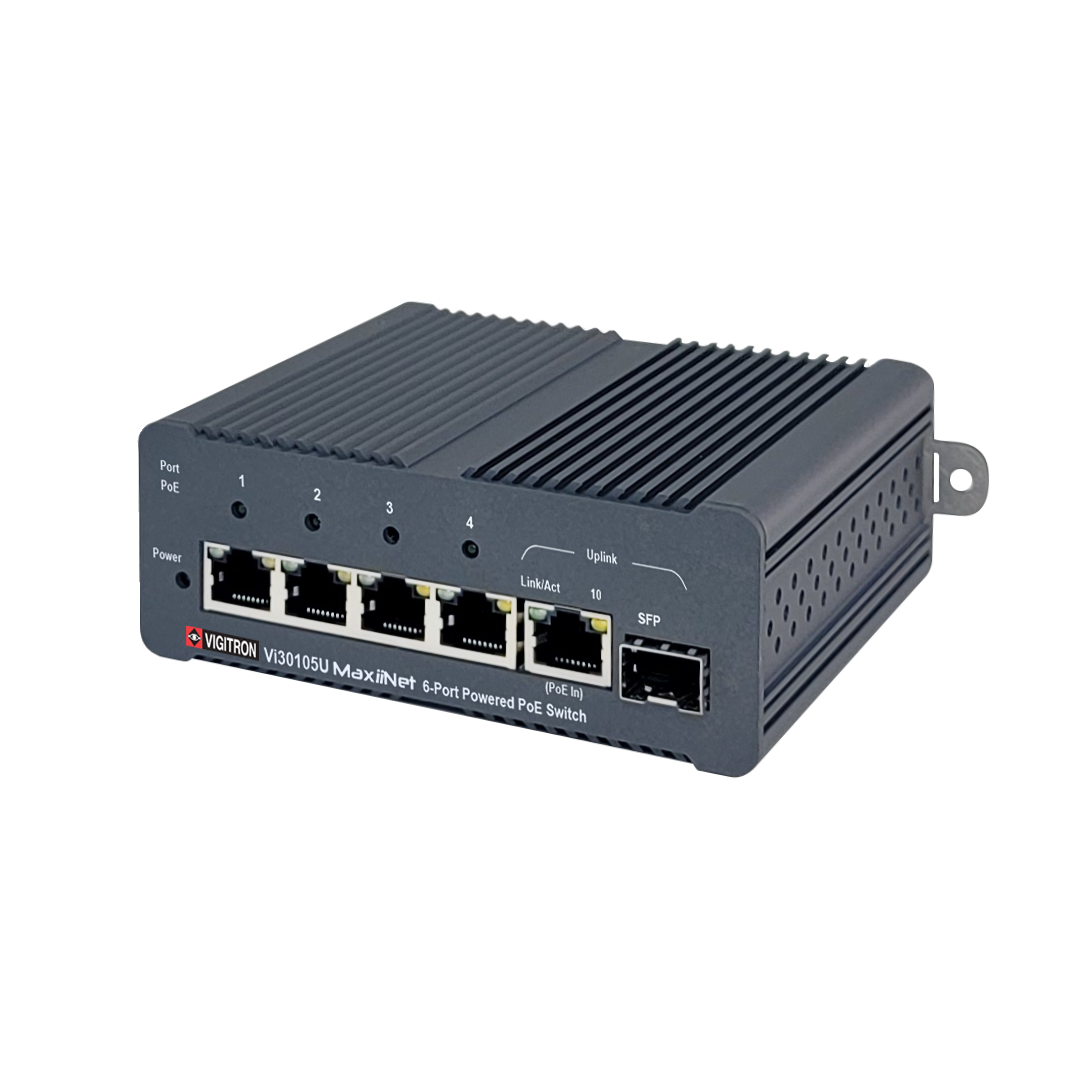

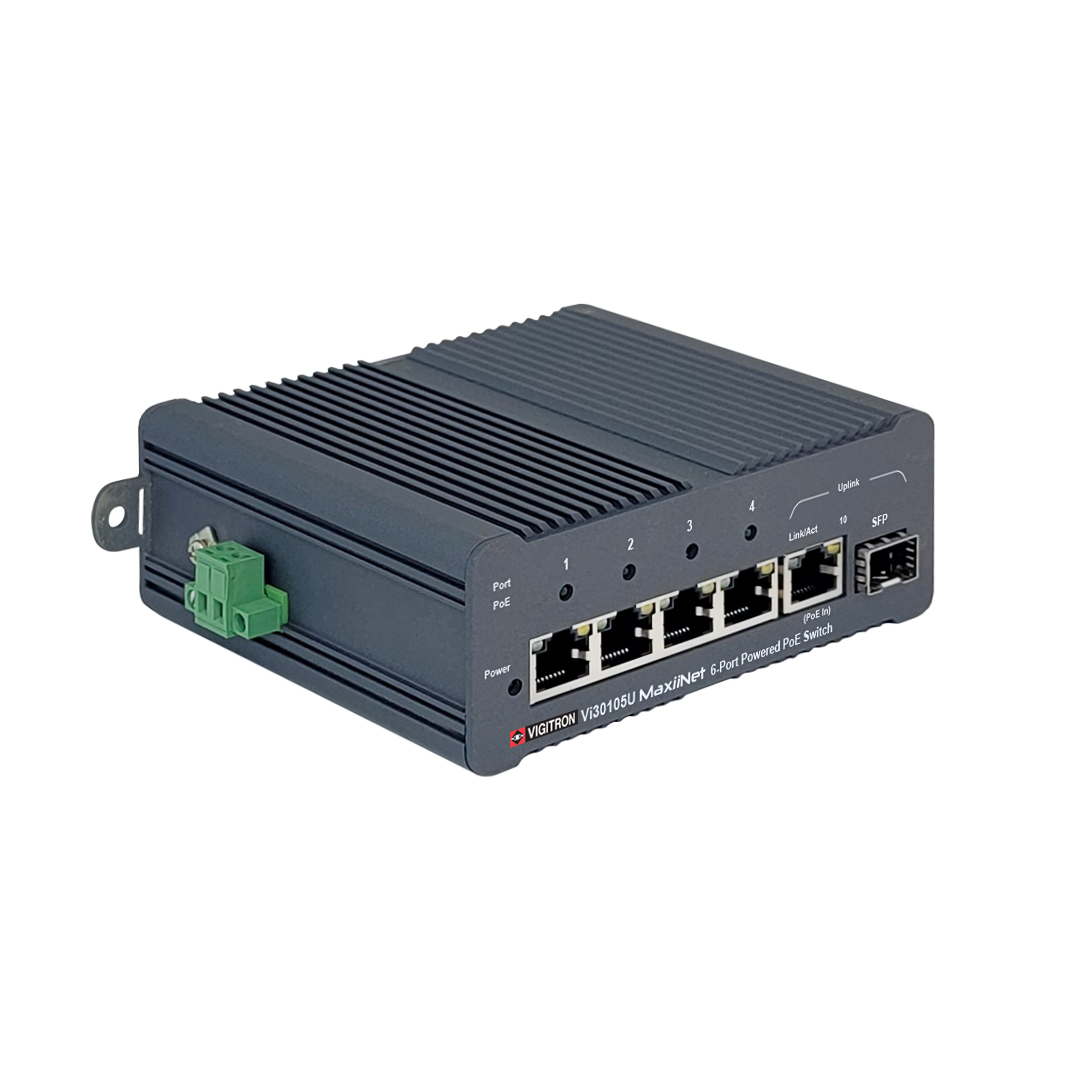

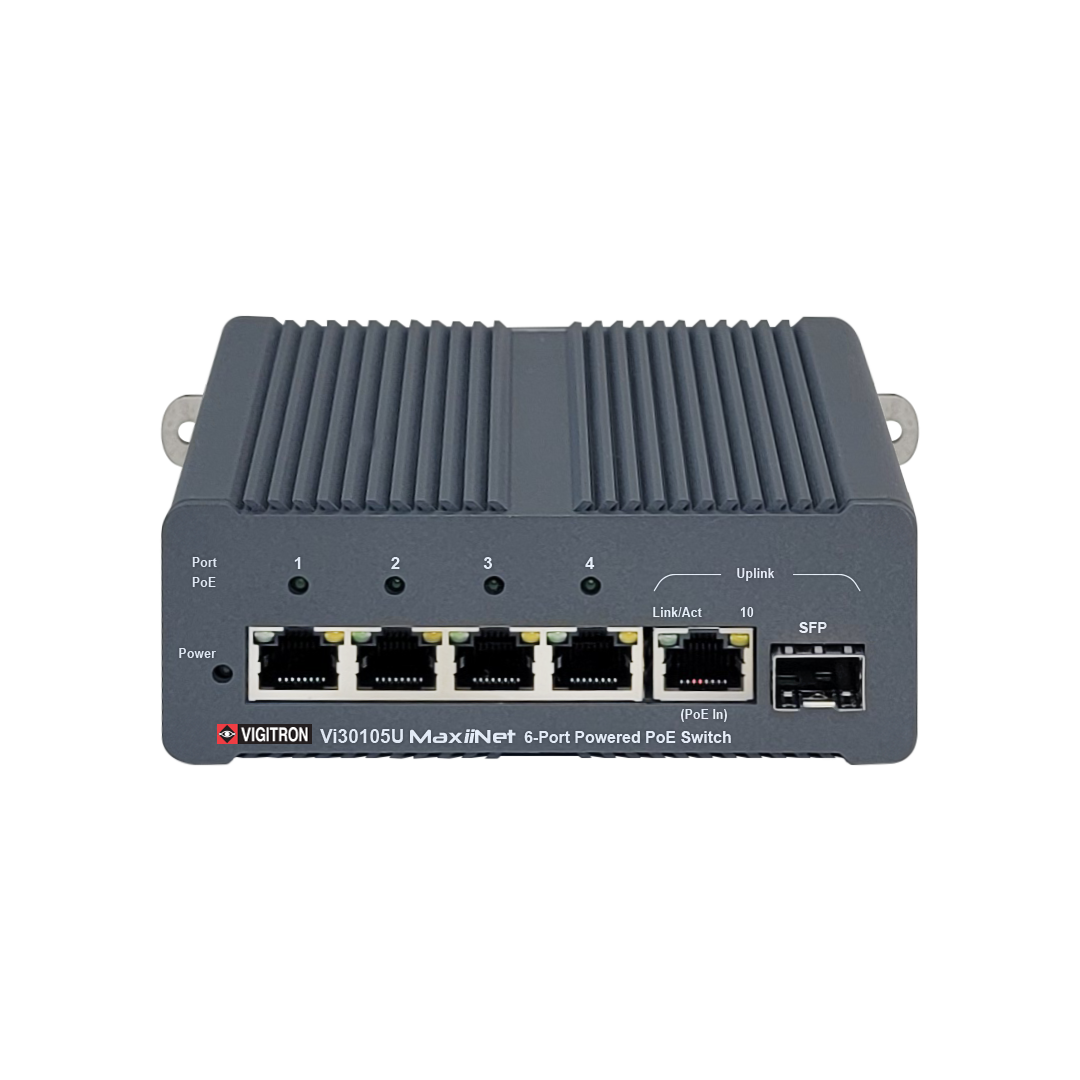

The Vigitron MaxiiNet™ Vi30105U is a high-performance 6-port PoE switch designed for fast and reliable Ethernet transmission. Furthermore, it supports both input PoE and local DC power, delivering up to 90W of PoE per port on four ports to power devices effectively.

Additionally, this switch includes a flexible MSA SFP-compliant fiber uplink port for distances up to 80 km. It also features a 1G copper uplink port for versatile connectivity. Moreover, with an operating temperature range from -40°C to 70°C, the Vi30105U performs reliably even in extreme environments.

In addition, fixed Layer 2 management features include 802.1p QoS for prioritizing data, support for 2K MAC addresses, and learning and aging capabilities. These functions, along with a non-blocking switch fabric, ensure smooth and efficient data transmission.

The Vi30105U is MegaPixel Certified (MPC™) and has undergone extensive testing. As a result, it ensures compatibility with major camera manufacturers and compliance with network packet performance standards. This ultimately guarantees error-free operation and high-quality performance in demanding applications.

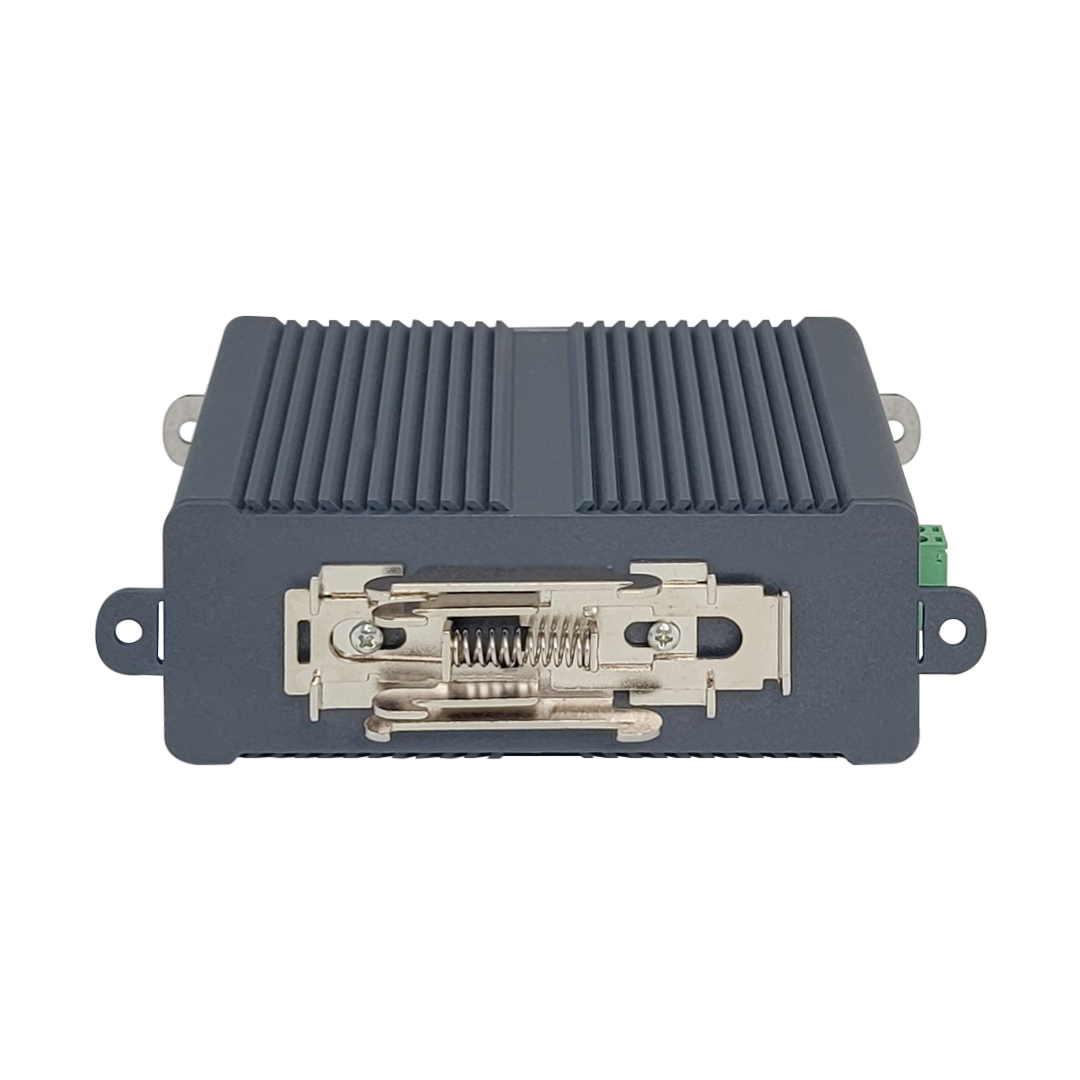

Its compact and durable design supports DIN Rail, desktop, and wall mounting, offering flexible installation options. Additionally, the Vi30105U reduces installation costs while maintaining reliable operation.

With advanced features, robust construction, and proven reliability, the Vi30105U is, therefore, an ideal choice for network security and industrial applications requiring dependable data and power solutions.
