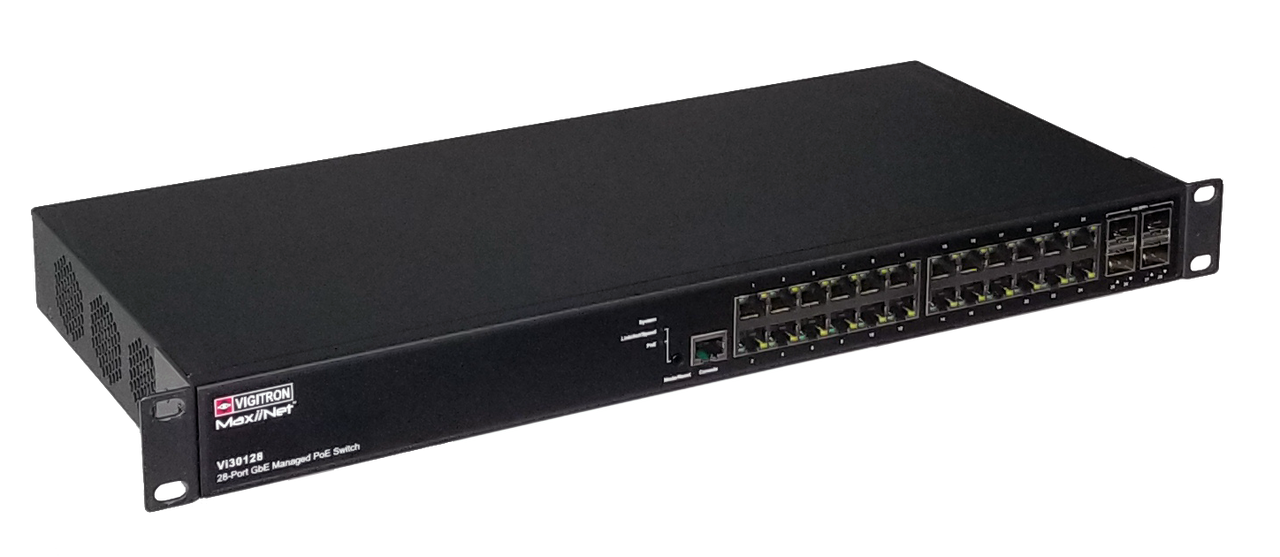

Vigitron Vi30128 28-Port MaxiiNet L2+/L3 Lite, PoE Switch

Vigitron’s Vi30128 is a next generation L2+/L3 Static Routing Managed Switch designed for high bandwidth and high PoE application. Its 10G uplink ports can integrate into any network backbone. With PoE port power up to 36W to handle surges and supported with a 740W, the Vi30128 provides maximum power to a maximum number of ports. Using Vigitron’s Vi00016 Combiner Cable, two ports can be combined to provide up to 72W power to PTZ dome cameras. Ports can be continuously monitored, able to reapply connections and PoE, to reduce service calls and increase system reliability. Up to 32 routes can be traced on a single port.

• High PoE Budget Total 740W with 24 individual ports up to 36W
• 4 -10G uplink ports
• 128Gbyte Switch fabric
• Layer 3 trace routing
• Automatic connection and reconnection with PoE application for more reliable start up and continuous operation
• Standard protocol ring operation

Features

• Provides 24 port high power PoE
• 26 port 1G with PoE 4 10G ports
• Port PoE power up to 36W
• 4 1G/10G uplink ports
• Automatic IP and PoE reconnection
• Supports jumbo frames up to 14Kbytes
• 740W PoE Budget
• 128Gbps Switch fabric
• Layer 3 static trace routing
• Download status reports
• On board certificate generator
• PoE power delay
• G.8032 standard ring protocol
• 1558v2- protocol for display application
